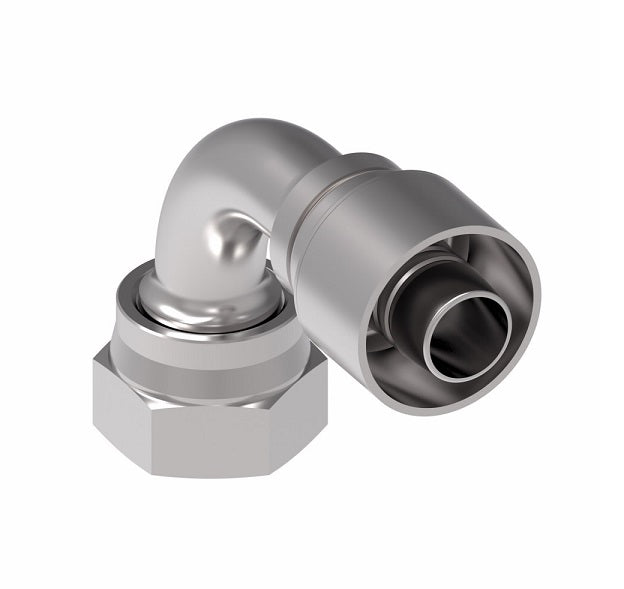

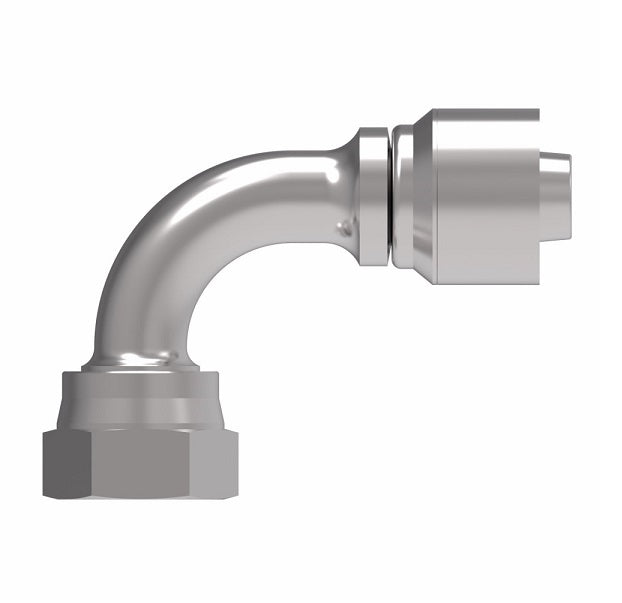

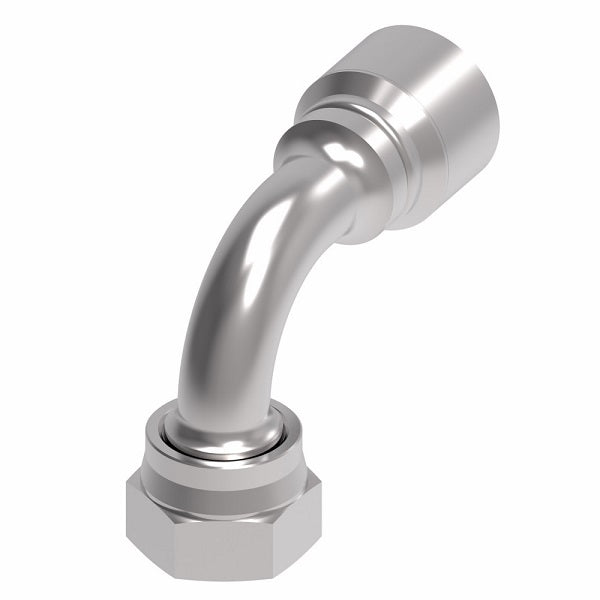

1GA10FRB10 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
1GA10FRB10 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel | Pack of 10
1GA10FRB10 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel | Pack of 10
1GA10FRB10 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

1GA10FRB10 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel | Pack of 10

$308.86 - $308.86
$308.86
$308.86 - $308.86
$308.86

Aeroquip® by Danfoss
1 & 2 Wire OTC Female ORS Swivel Short Drop Crimp Fitting (FRB) - 90° Elbow

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 1GA10FRB10 Danfoss | 10 |
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female O-Ring Face Seal, 5/8in Hose Barb
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: 2583 Series  |   2661 Series  |   FC466 Series  |   FC498 Series  |   FC598 Series  |   FC619 Series  |   FC699 Series
Technical Info:
Steel
Part Number 		Thread Hose Size A D E&Oslash H Hex 1
1GA4FRB4 9/16-18 -04 2.09" 0.92" 0.17" 0.82" 11/16"
1GA6FRB6 11/16-16 -06 2.34" 1.34" 0.26" 0.90" 13/16"
1GA8FRB8 13/16-16 -08 2.84" 1.67" 0.36" 1.15" 15/16"
1GA10FRB10 1-14 -10 3.07" 1.91" 0.45" 1.27" 1-1/8"
1GA12FRB12 1-3/16-12 -12 3.49" 2.30" 0.55" 1.88" 1-3/8"
1GA16FRB12 1-7/16-12 -12 4.04" 2.85" 0.61" 2.21" 1-5/8"
1GA16FRB16 1-7/16-12 -16 4.22" 2.87" 0.81" 2.21" 1-5/8"
1GA20FRB16 1-11/16-12 -16 4.85" 3.50" 0.81" 2.51" 1-7/8"
1GA20FRB20 1-11/16-12 -20 5.30" 3.57" 1.02" 2.51" 1-7/8"
1GA24FRB24 2-12 -24 4.63" 2.81" 1.26" 2.70" 2-1/4"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
