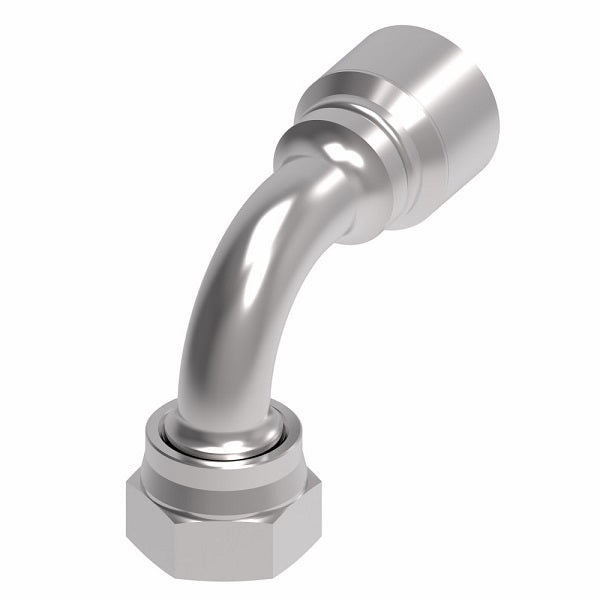

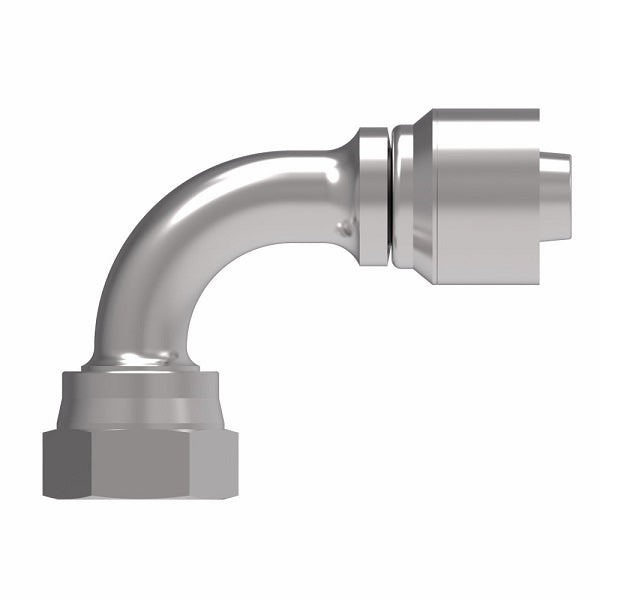

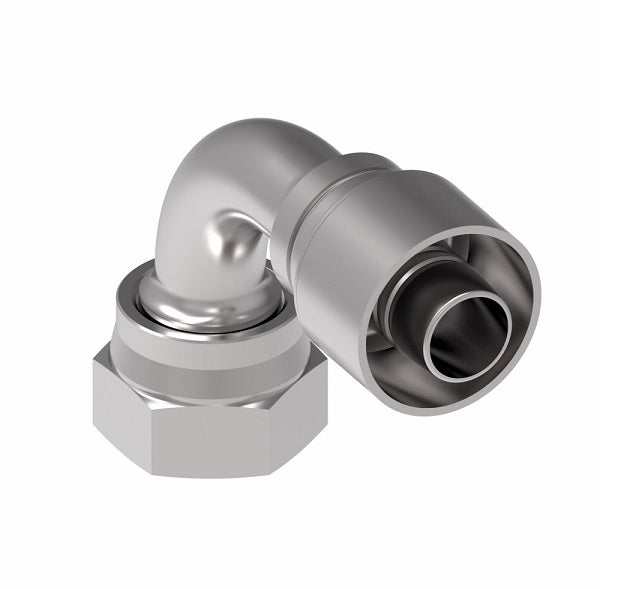

1GA20FRB16 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel
1GA20FRB16 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel
1GA20FRB16 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel
1GA20FRB16 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

1GA20FRB16 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

$296.30 - $296.30
$296.30
$296.30 - $296.30
$296.30

Aeroquip® by Danfoss
1 & 2 Wire OTC Female ORS Swivel Short Drop Crimp Fitting (FRB) - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1GA20FRB16 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Female O-Ring Face Seal, 1in Hose Barb
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: 2583 Series  |   2661 Series  |   FC466 Series  |   FC498 Series  |   FC598 Series  |   FC619 Series  |   FC699 Series
Technical Info:
Steel
Part Number 		Thread Hose Size A D E&Oslash H Hex 1
1GA4FRB4 9/16-18 -04 2.09" 0.92" 0.17" 0.82" 11/16"
1GA6FRB6 11/16-16 -06 2.34" 1.34" 0.26" 0.90" 13/16"
1GA8FRB8 13/16-16 -08 2.84" 1.67" 0.36" 1.15" 15/16"
1GA10FRB10 1-14 -10 3.07" 1.91" 0.45" 1.27" 1-1/8"
1GA12FRB12 1-3/16-12 -12 3.49" 2.30" 0.55" 1.88" 1-3/8"
1GA16FRB12 1-7/16-12 -12 4.04" 2.85" 0.61" 2.21" 1-5/8"
1GA16FRB16 1-7/16-12 -16 4.22" 2.87" 0.81" 2.21" 1-5/8"
1GA20FRB16 1-11/16-12 -16 4.85" 3.50" 0.81" 2.51" 1-7/8"
1GA20FRB20 1-11/16-12 -20 5.30" 3.57" 1.02" 2.51" 1-7/8"
1GA24FRB24 2-12 -24 4.63" 2.81" 1.26" 2.70" 2-1/4"
