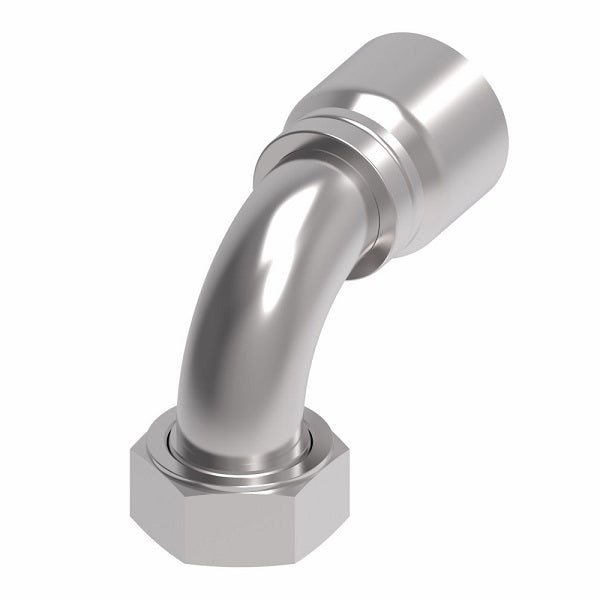

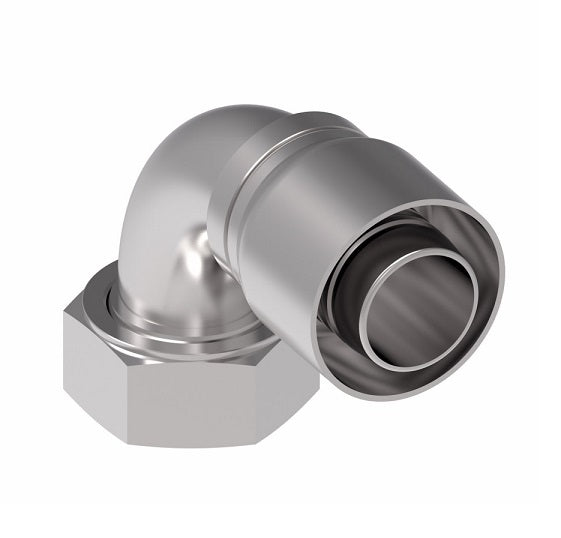

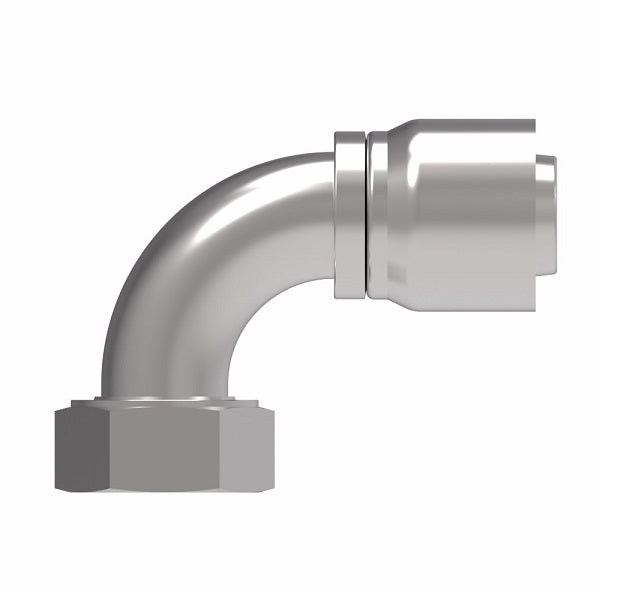

1GA24FRB24 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel

Original price $204.84 - Original price $204.84
Original price
$204.84
$204.84 - $204.84
Current price $204.84

Aeroquip® by Danfoss
1 & 2 Wire OTC Female ORS Swivel Short Drop Crimp Fitting (FRB) - 90° Elbow

(Formerly Eaton Aeroquip)

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1GA24FRB24 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/2in Female O-Ring Face Seal, 1-1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: 2583 Series  |   2661 Series  |   FC466 Series  |   FC498 Series  |   FC598 Series  |   FC619 Series  |   FC699 Series
Steel
Part Number
Thread Hose Size A D E&Oslash H Hex 1

1GA4FRB4 9/16-18 -04 2.09" 0.92" 0.17" 0.82" 11/16"
1GA6FRB6 11/16-16 -06 2.34" 1.34" 0.26" 0.90" 13/16"
1GA8FRB8 13/16-16 -08 2.84" 1.67" 0.36" 1.15" 15/16"
1GA10FRB10 1-14 -10 3.07" 1.91" 0.45" 1.27" 1-1/8"
1GA12FRB12 1-3/16-12 -12 3.49" 2.30" 0.55" 1.88" 1-3/8"
1GA16FRB12 1-7/16-12 -12 4.04" 2.85" 0.61" 2.21" 1-5/8"
1GA16FRB16 1-7/16-12 -16 4.22" 2.87" 0.81" 2.21" 1-5/8"
1GA20FRB16 1-11/16-12 -16 4.85" 3.50" 0.81" 2.51" 1-7/8"
1GA20FRB20 1-11/16-12 -20 5.30" 3.57" 1.02" 2.51" 1-7/8"
1GA24FRB24 2-12 -24 4.63" 2.81" 1.26" 2.70" 2-1/4"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
