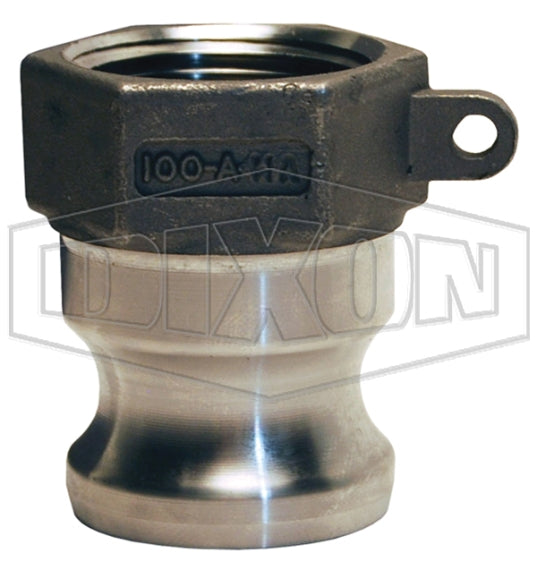

200-A-HA by Dixon Valve | Cam & Groove Adapter | Type A | 2" Adapter x 2" Female NPT | Hastelloy®

200-A-HA by Dixon Valve | Cam & Groove Adapter | Type A | 2" Adapter x 2" Female NPT | Hastelloy®

Save $26.59 Save $26.59
$314.87
$314.87 - $314.87
$314.87
$288.28
$288.28 - $288.28
$288.28

Dixon Valve
Cam & Groove Fitting | Type A | Adapter x Female NPT | Hastelloy®

Designed for use with liquids.
Specifications for Variant SKU: 200-A-HA Dixon
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 2in Male Cam & Groove, 2in Female NPT
Material(s): Hastelloy
Features:
  • Precision machined to rigid tolerances.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
Hastelloy® CW12MW
Part Number		 Size Max. Operating Pressure
100-A-HA 1" 250 PSI
150-A-HA 1-1/2" 250 PSI
200-A-HA 2" 250 PSI
300-A-HA 3" 125 PSI
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
