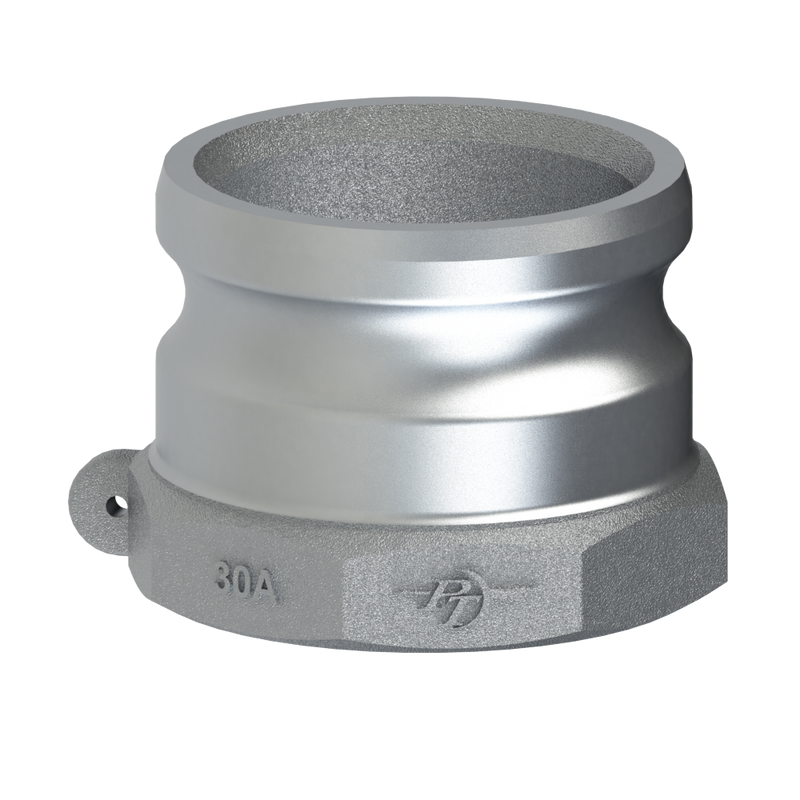

2000101 (E05A) by PT-Coupling | Cam & Groove Adapter | Type A | 1/2" Adapter x 1/2" Female NPT | Hard Coat Aluminum

2000101 (E05A) by PT-Coupling | Cam & Groove Adapter | Type A | 1/2" Adapter x 1/2" Female NPT | Hard Coat Aluminum

Save $5.89 Save $5.89
$15.85
$15.85 - $15.85
$15.85
$9.96
$9.96 - $9.96
$9.96

PT Coupling
Cam and Groove (Camlock) Adapter | Type A | Adapter x Female NPT Thread | Hard Coat Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 2000101 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 1/2in Male Cam & Groove, 1/2in Female NPT
Material(s): Hard Coat Aluminum
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance.
  • Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products.
  • Made in the USA
Part Name Item # Adapter
Size		 Thread
(Female NPT)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Across
Corners
(F)		 Chain Lug
Extension
(G)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*		 Weight
E05A 2000101 1/2" 1/2" 1.60" 0.53" 1.12" - 1.03" 250 PSI 0.055 lbs.
1/2A 2000105 3/4" 1/2" 1.62" 0.66" 1.49" - 0.97" 250 PSI 0.12 lbs.
07A 2000107 3/4" 3/4" 1.62" 0.75" 1.49" - 0.97" 250 PSI 0.09 lbs.
10A 2000110 1" 1" 1.91" 0.88" 1.76" 0.34 1.19" 250 PSI 0.165 lbs.
12A 2000112 1-1/4" 1-1/4" 2.16" 1.04" 2.19" 0.34" 1.44" 250 PSI 0.26 lbs.
15A 2000115 1-1/2" 1-1/2" 2.29" 1.35" 2.44" 0.33" 1.48" 250 PSI 0.32 lbs.
20A 2000120 2" 2" 2.54" 1.72" 2.92" 0.31" 1.75" 250 PSI 0.435 lbs.
25A 2000125 2-1/2" 2-1/2" 2.75" 2.14" 3.49" 0.27" 1.75" 200 PSI 0.61 lbs.
30A 2000130 3" 3" 2.84" 2.80" 4.22" 0.44" 1.84" 200 PSI 0.81 lbs.
40A 2000140 4" 4" 3.16" 3.78" 5.41" 0.39" 1.87" 150 PSI 1.505 lbs.
50A 2000150 5" 5" 3.22" 4.79" 6.49" 0.35" 1.97" 75 PSI 1.86 lbs.
60A 2000160 6" 6" 3.35" 5.90" 7.70" 0.60" 2.19" 75 PSI 2.49 lbs.

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
