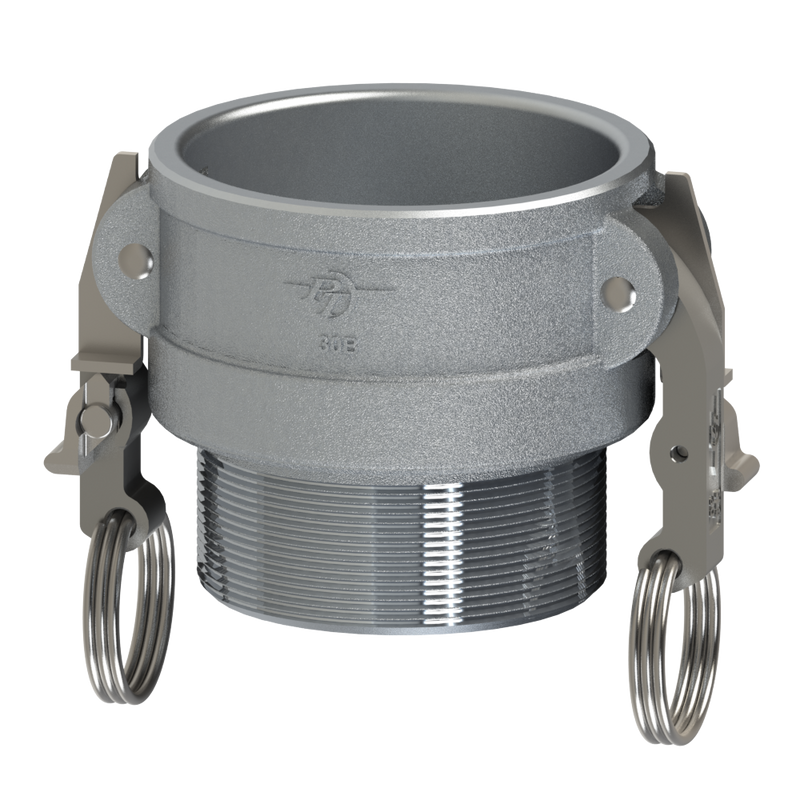

2000225L2 (25B SLII) by PT-Coupling | STA-LOK® II Cam & Groove Adapter | Type B | 2-1/2" Coupler x 2-1/2" Male NPT | Hard Coat Aluminum | Buna-N Seal

Save $52.24

$140.73

$140.73 - $140.73

$140.73

$88.49

$88.49 - $88.49

$88.49

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Adapter | Type B | Coupler x Male NPT | Hard Coat Aluminum | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 2000225L2 PT-Coupling
Series:	STA-LOK II
Shape (Orientation):	Straight
Cam Type:	Type B
Ends Configuration:	2-1/2in Female Cam & Groove, 2-1/2in Male NPT
Material(s):	Hard Coat Aluminum
Seal Material(s):	Buna-N/Nitrile

Overview:
STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
Pins, rings & the lock plate in STA-LOK® II couplings are 300 series Stainless Steel. This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance. Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products. Made in the USA


Part Name	Item #	Coupler Size	Male NPT Thread	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
10B SLII	2000210L2	1"	1"	5.10"	2.44"	2.50"	1.56"	0.97"	250 PSI
12B SLII	2000212L2	1-1/4"	1-1/4"	6.86"	3.26"	2.89"	1.84"	1.25"	250 PSI
15B SLII	2000215L2	1-1/2"	1-1/2"	7.16"	3.56"	2.93"	1.88"	1.50"	250 PSI
20B SLII	2000220L2	2"	2"	7.54"	3.94"	3.20"	2.15"	1.88"	250 PSI
25B SLII	2000225L2	2-1/2"	2-1/2"	8.03"	4.43"	3.63"	2.18"	2.38"	200 PSI
30B SLII	2000230L2	3"	3"	9.56"	5.46"	3.82"	2.27"	2.88"	200 PSI
40B SLII	2000240L2	4"	4"	10.66"	6.56"	4.00"	2.34"	3.60"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
