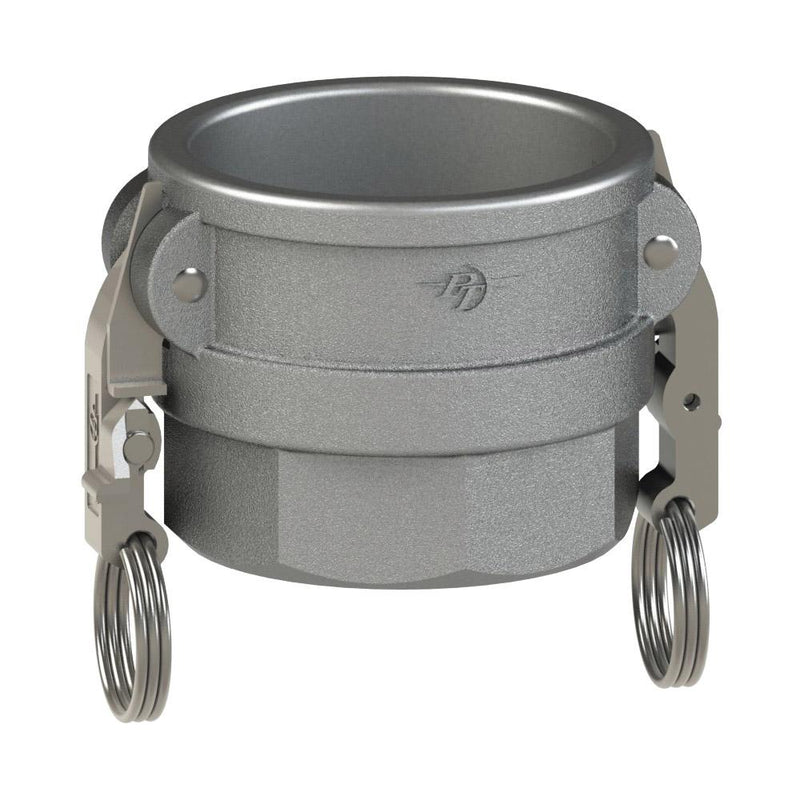

2000450L2 (50D SLII) by PT-Coupling | STA-LOK® II Cam & Groove Adapter | Type D | 5" Coupler x 5" Female NPT | Hard Coat Aluminum | Buna-N Seal

Save $123.41

$332.45

$332.45 - $332.45

$332.45

$209.04

$209.04 - $209.04

$209.04

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Adapter | Type D | Coupler x Female NPT | Hard Coat Aluminum | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 2000450L2 PT-Coupling
Series:	STA-LOK II
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	5in Female Cam & Groove, 5in Female NPT
Material(s):	Hard Coat Aluminum
Seal Material(s):	Buna-N/Nitrile

Overview:
STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance. Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products. Made in the USA


Part Name	Item #	Coupler Size	Female NPT Thread	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
10D SLII	2000410L2	1"	1"	5.10"	2.44"	2.50"	0.97"	250 PSI
12D SLII	2000412L2	1-1/4"	1-1/4"	6.86"	3.26"	2.70"	1.25"	250 PSI
15D SLII	2000415L2	1-1/2"	1-1/2"	7.16"	3.56"	2.80"	1.50"	250 PSI
20D SLII	2000420L2	2"	2"	7.54"	3.94"	3.10"	1.88"	250 PSI
25D SLII	2000425L2	2-1/2"	2-1/2"	8.03"	4.43"	3.40"	2.38"	200 PSI
30D SLII	2000430L2	3"	3"	9.56"	5.46"	3.50"	2.88"	200 PSI
40D SLII	2000440L2	4"	4"	10.66"	6.56"	3.90"	3.60"	150 PSI
50D SLII	2000450L2	5"	5"	11.67"	7.57"	4.10"	4.50"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
