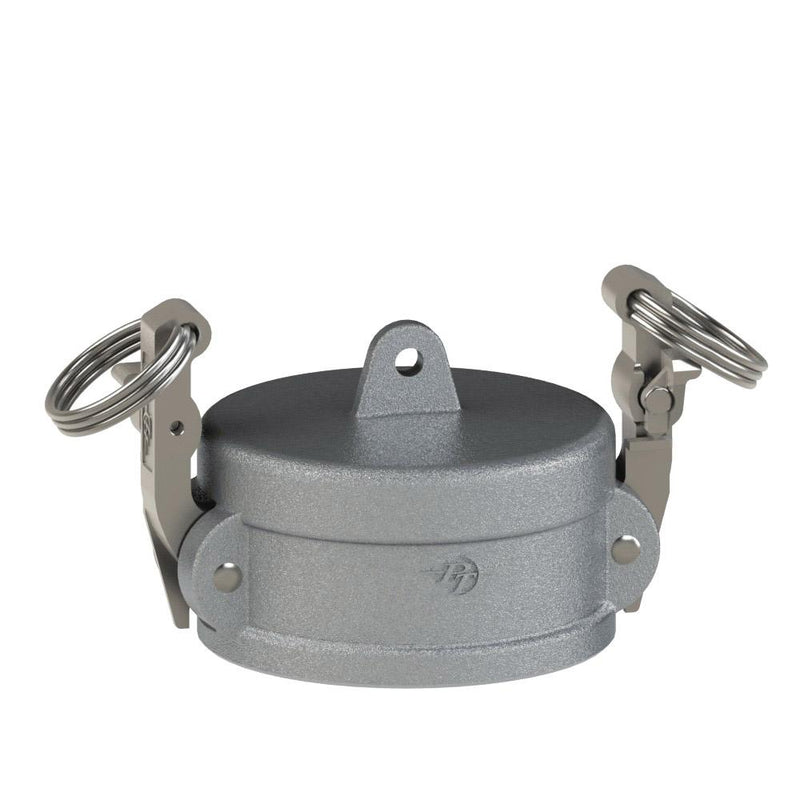

2001150L2 (50V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 5" Coupler | Hard Coat Aluminum

2001150L2 (50V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 5" Coupler | Hard Coat Aluminum

Save $15.68 Save $15.68
$141.13
$141.13 - $141.13
$141.13
$125.45
$125.45 - $125.45
$125.45

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Dust Cap | Type V | Hard Coat Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 2001150L2 PT-Coupling
Series: STA-LOK II
Cam Type: Type DC
Ends Configuration: 5in Female Cam & Groove
Material(s): Hard Coat Aluminum
Overview:
  • STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
  • This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance.
  • Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Chain Lug
Extension
(G)		 Max. Allowable
Working Press.
(PSI)*

10V SLII 2001110L2 1" 5.10" 2.44" 1.60" 0.62" 250 PSI

12V SLII 2001112L2 1-1/4" 6.86" 3.26" 1.89" 0.60" 250 PSI

15V SLII 2001115L2 1-1/2" 7.16" 3.56" 1.96" 0.86" 250 PSI

20V SLII 2001120L2 2" 7.54" 3.94" 2.25" 0.76" 250 PSI

25V SLII 2001125L2 2-1/2" 8.03" 4.43" 2.28" 0.90" 200 PSI

30V SLII 2001130L2 3" 9.56" 5.46" 2.27" 1.03" 200 PSI

40V SLII 2001140L2 4" 10.66" 6.56" 2.34" 0.99" 150 PSI

50V SLII 2001150L2 5" 11.67" 7.57" 2.44" 1.15" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
