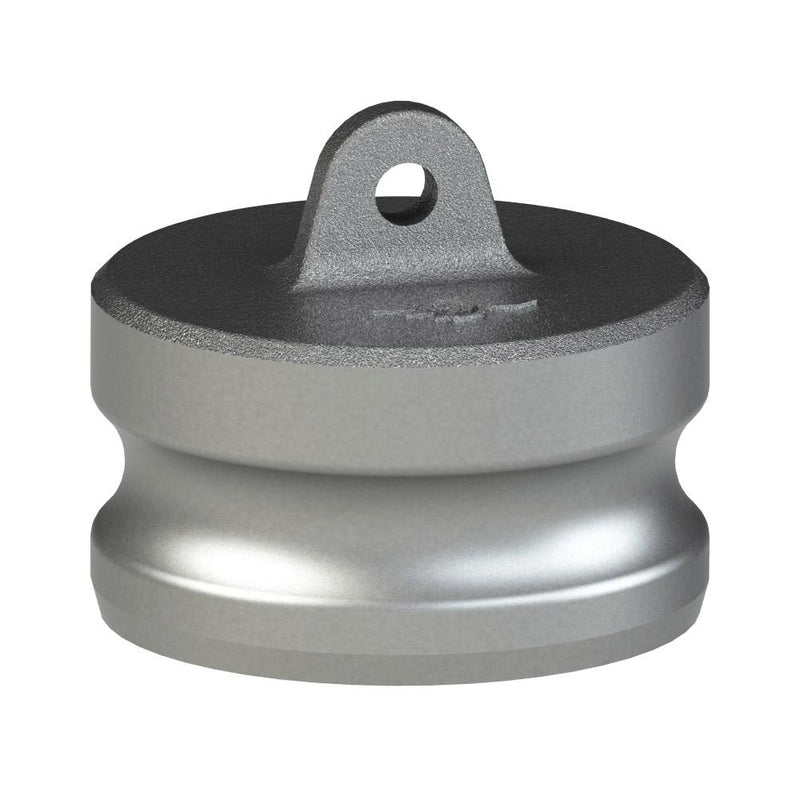

2001240 (40W) by PT-Coupling | Cam & Groove Dust Plug | Type W | 4" Adapter | Hard Coat Aluminum

2001240 (40W) by PT-Coupling | Cam & Groove Dust Plug | Type W | 4" Adapter | Hard Coat Aluminum

Save $5.97 Save $5.97
$53.76
$53.76 - $53.76
$53.76
$47.79
$47.79 - $47.79
$47.79

PT Coupling
Cam and Groove (Camlock) Dust Plug | Type W | Hard Coat Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 2001240 PT-Coupling
Cam Type: Type DP
Ends Configuration: 4in Male Cam & Groove
Material(s): Hard Coat Aluminum
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance.
  • Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products.
  • Couplings not interchangeable in the industry are sizes 8" through 12"
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Overall
Length
(C)		 Chain Lug
Extension
(G)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*
E05W 2001201 1/2" 1.06" 0.50" 1.03" 250 PSI
07W 2001207 3/4" 1.41" 0.59" 0.97" 250 PSI
10W 2001210 1" 1.35" 0.96" 1.19" 250 PSI
12W 2001212 1-1/4" 1.94" 0.62" 1.44" 250 PSI
15W 2001215 1-1/2" 2.06" 0.50" 1.48" 250 PSI
20W 2001220 2" 1.90" 0.70" 1.75" 250 PSI
25W 2001225 2-1/2" 2.44" 0.81" 1.75" 200 PSI
30W 2001230 3" 2.03" 1.00" 1.84" 200 PSI
40W 2001240 4" 2.10" 1.00" 1.87" 150 PSI
50W 2001250 5" 2.63" 0.85" 1.97" 75 PSI
60W 2001260 6" 2.28" 1.00" 2.19" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
