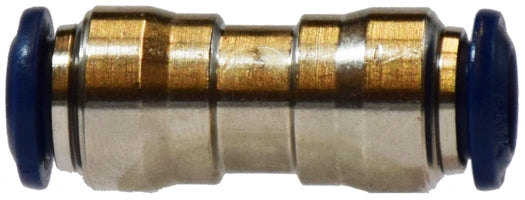

20024N (20-024N) Midland Push-In Fitting - Union Connector - 1/2" Tube OD x 3/8" Tube OD - Nickel Plated Brass

20024N by Midland | Push-In Fitting | Union Connector | 1/2" x 3/8" Tube OD | Nickel Plated Brass

Save $5.71 Save $5.71
$14.27
$14.27 - $14.27
$14.27
$8.56
$8.56 - $8.56
$8.56

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Union Connector

Inventory @ Manufacturers Warehouse: 112 Units
Specifications for Variant SKU: 20024N Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Push-to-Connect, 3/8in Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Features:
  • Saves time and money
  • No stripped threads
  • No stripped parts
  • Reduce inventory
  • Completely reusable
  • Quick installation
  • No pitch identification
Specifications:
  • Tolerance: +/- .02 on all dimensions
  • Max Operating Pressure: Vacuum to 290PSI
  • Min Temperature: -4°F
  • Max Temperature: 176°F
  • Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer
  • Media: Compressed air, water, vacuum
Component Parts and Materials:
Body Brass - Nickel Plated
Thrust Ring Acetalic Resin/ Glass filled Nylon
Sleeve Brass - Nickel Plated
Gripper Collet Stainless Steel
Safety Ring PA66
Lip Seal (1/8" O-Ring Seal) NBR 70
Thread Seal NBR 70
Crossover Series:
62PL 88040
Part Number Tube O.D. A B Approx. Weight
(Lbs.)
20017N
(20-017N) 		1/8" 1.06" 0.34" 0.03
20018N
(20-018N) 		5/32" 1.20" 0.41" 0.03
20016N
(20-016N) 		5/32" x 1/4" 1.20" 0.40" 0.04
20019N
(20-019N) 		1/4" 1.38" 0.49" 0.05
20015N
(20-015N) 		5/16" 1.46" 0.57" 0.06
20020N
(20-020N) 		3/8" 1.69" 0.69" 0.06
20022N
(20-022N) 		3/8" x 1/4" 1.69" 0.68" 0.06
20021N
(20-021N) 		1/2" 1.93" 0.81" 0.18
20024N
(20-024N) 		1/2" x 3/8" 1.84" 0.80" 0.17

Dimension data can change without notice.
