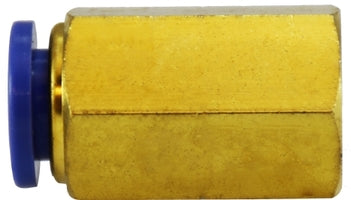

20037C (20-037C) Midland Push-In Fitting - Female Connector - 3/8" Tube OD x 3/8" Female NPT - Brass

20037C by Midland | Push-In Fitting | Connector | 3/8" Tube OD x 3/8" Female NPT | Brass

Save $1.17 Save $1.17
$10.49
$10.49 - $10.49
$10.49
$9.32
$9.32 - $9.32
$9.32

Midland Industries
Brass Fitting - Brass Body Push-in Fitting - Female Connector

The latest generation of composite material is used in the body construction in addition to brass on threaded components, and stainless steel on the tube gripper.

Inventory @ Manufacturers Warehouse: 28 Units
Specifications for Variant SKU: 20037C Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Push-to-Connect, 3/8in Female NPT
Material(s): Brass
Seal Material(s): NBR

SPECIFICATIONS

Fluid Admitted: Air Working Pressure Range: 0-150 PSI (10 BAR)
Min. Burst Pressure: 340 PSI (23 BAR) Working Temperature Range: 0°F ~160°F
Tolerance: +/- .02 on all dimensions.
Materials of Construcion
1 Body Composite Polyacetal (Hemopolymer, Copolymer)
2 Body Brass
3 Tube Release Acetal Resin
4 Retainer Brass
5 Gripper Ring Stainless Steel
6 Spacer Brass
7 O-Ring NBR 70
8 Threads Brass with White Sealant
Crossover Series:
PQ66P
Part Number Tube O.D. x Female NPT Approx. Weight
(Lbs.)
20034C
(20-034C)		 1/4" x 1/8" 0.02
20035C
(20-035C)		 1/4" x 1/4" 0.04
20036C
(20-036C)		 3/8" x 1/4" 0.04
20037C
(20-037C)		 3/8" x 3/8" 0.06

Dimension Data can change without notice.

Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
