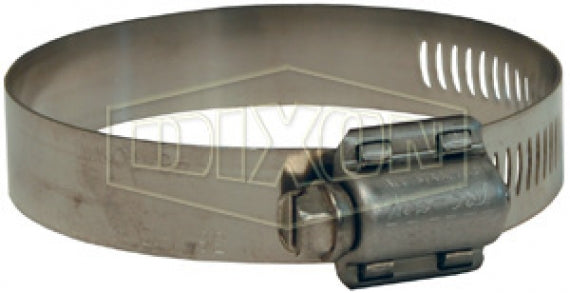

20040 by Dixon Valve | Style 200 | Aero-Seal® Worm Gear Clamp | 9/16" Band Width | Hose OD Range: from 2-1/16" to 3" | 300 Stainless Steel Band | 410 Stainless Steel Screw

20040 by Dixon Valve | Style 200 | Aero-Seal® Worm Gear Clamp | 9/16" Band Width | Hose OD Range: from 2-1/16" to 3" | 300 Stainless Steel Band | 410 Stainless Steel Screw | Box of 10

$2.36 - $2.36
$2.36
$20.98
$20.98 - $20.98
$20.98

Dixon Valve
Aero-Seal® Worm Gear Clamps | Style 200


Package Quantity: 10 EA

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 20040 Dixon | 10 |
Brand: Aero-Seal
Series: Style 200
Material(s): 300 Stainless Steel
Clamp Width: 0.5625
Minimum Clamp I.D.: 2.0625
Maximum Clamp I.D.: 3
Features:
  • Four-piece construction.
  • Slotted hex head screw design.
  • Heat treated screws have buttress thread type.
  • Band slots designed for strength and smooth action.
  • Saddle interlocks into embossed band to form a true concentric circle.
  • Safety collar or thumb screw available on the style 200-series only.
Materials:
  • Style 100
    • Band and housing: 300 Stainless Steel
    • Screw: Plated Carbon Steel
  • Style 200
    • Band and housing: 300 Stainless Steel
    • Screw: 410 Stainless Steel
  • Style 300
    • Band and housing: 300 Stainless Steel
    • Screw: 305 Stainless Steel
Note:
  • Suggested installation torque 30-42 in. lbs.; maximum recommended torque 60 in. lbs.
  • Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp.
Style 100
Part Number		 Style 200
Part Number		 Style 300
Part Number		 Band Width Hose OD
From To
10006 20006 30006 9/16" 7/16" 25/32"
10008 20008 30008 9/16" 1/2" 29/32"
10010 20010 30010 9/16" 9/16" 1-1/16"
10012 20012 30012 9/16" 11/16" 1-1/4"
10016 20016 30016 9/16" 13/16" 1-1/2"
10020 20020 30020 9/16" 13/16" 1-3/4"
10024 20024 30024 9/16" 1-1/16" 2"
10028 20028 30028 9/16" 1-5/16" 2-1/4"
10032 20032 30032 9/16" 1-9/16" 2-1/2"
10036 20036 30036 9/16" 1-13/16" 2-3/4"
10040 20040 30040 9/16" 2-1/16" 3"
10044 20044 30044 9/16" 2-5/16" 3-1/4"
10048 20048 30048 9/16" 2-9/16" 3-1/2"
10052 20052 30052 9/16" 2-13/16" 3-3/4"
10056 20056 30056 9/16" 3-1/16" 4"
10060 20060 30060 9/16" 3-5/16" 4-1/4"
