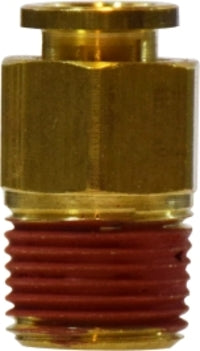

20045 (20-045) Midland Push-In Fitting - Male Connector - 1/8" Tube OD x 1/16" Male NPTF - Brass

20045 by Midland | Push-In Fitting | Connector | 1/8" Tube OD x 1/16" Male NPTF | Brass

Save $1.03 Save $1.03
$9.27
$9.27 - $9.27
$9.27
$8.24
$8.24 - $8.24
$8.24

Midland Industries
Brass Fitting - Push-In Fitting - Male Connector - Brass

Inventory @ Manufacturers Warehouse: 255 Units
Specifications for Variant SKU: 20045 Midland
Shape (Orientation): Straight
Ends Configuration: 1/8in Push-to-Connect, 1/16in Male NPTF
Material(s): Brass
Features:
  • Temperature Range: -10°F to 200°F
  • Tolerance: +/- .02 on all dimensions.
  • Quick Connect - simply push tubing in, no tools. Saves up to 75% of assembly time of standard compression fittings.
  • Quick Disconnect - hold two fingers on insert and pull tubing out, no tools required.
  • Reuseable - connect and disconnect numerous times.
  • Full Flow Design - provides up to 60% more flow area than conventional fittings with internal tube supports.
  • Positive Seal - no leaks. After tubing is inserted, seal is made.
  • Versatile - Buna-N O-Rings standard.
  • Secure Tube Retention - pulling on tubing only serves to tighten the connection.
  • Self Contained Assembly - no loose parts, brass body and insert.
  • Straight Connectors - have interior hex for Allen key tightening where space is limited, no need to use a wrench.
  • Pre-Applied Teflon®-Based pipe sealant on all male pipe threads, saving customer additional labor.
  • Pipe Thread - NPTF with Teflon® based sealant pre-applied.
  • Not Lead Free
Design:
  • When tubing (1) is inserted into the fitting, it first passes through the gripping teeth (2).
  • Just beyond the gripping teeth is the o-ring (3) which provides the leak proof seal against the OD of the tube.
  • The gripping teeth grab the tube, which expands the insert. Pulling back on the tube only tightens the grip as the insert moves onto the camming surface (4).
  • Pressure through the tube also serves to tighten the grip.
  • The tube bottoms against a positive tube stop (5) in a cavity providing tube support to prevent leakage.
    		•
    Crossover Series:
    AQ68P MQ68 268PP AQ68 6510 3115 68PL KQH 12-425 50-568 268-OF 1168
    Part Number Tube O.D x Male NPTF A Hex Approx. Weight
    (Lbs.)
    20047*
    (20-047)     		1/8" x 10-32"* 0.69" 0.37" 0.02
    20045
    (20-045)     		1/8" x 1/16" 0.68" 0.37" 0.02
    20048
    (20-048)     		1/8" x 1/8" 0.61" 0.43" 0.02
    20023
    (20-023)     		1/8" x 1/4" 0.98" 0.56" 0.04
    20049*
    (20-049)     		5/32" x 10-32"* 0.67" 0.37" 0.02
    20050
    (20-050)     		5/32" x 1/8" 0.67" 0.43" 0.03
    20046
    (20-046)     		5/32" x 1/4" 0.85" 0.56" 0.05
    20051*
    (20-051)     		3/16" x 10-32"* 0.80" 0.37" 0.02
    20052
    (20-052)     		3/16" x 1/8" 0.93" 0.43" 0.03
    20053*
    (20-053)     		1/4" x 10-32"* 0.70" 0.43" 0.03
    20039
    (20-039)     		1/4" x 1/16" 0.92" 0.43" 0.06
    20054
    (20-054)     		1/4" x 1/8" 0.93" 0.43" 0.06
    20055
    (20-055)     		1/4" x 1/4" 0.93" 0.56" 0.10
    20056
    (20-056)     		1/4" x 3/8" 0.94" 0.68" 0.08
    20530
    (20-530)     		5/16" x 1/8" 1.07" 0.56" 0.05
    20531
    (20-531)     		5/16" x 1/4" 0.98" 0.56" 0.10
    20532
    (20-532)     		5/16" x 3/8" 1.06" 0.75" 0.08
    20057
    (20-057)     		3/8" x 1/8" 1.10" 0.56" 0.06
    20058
    (20-058)     		3/8" x 1/4" 1.11" 0.56" 0.05
    20059
    (20-059)     		3/8" x 3/8" 1.02" 0.68" 0.08
    20062
    (20-062)     		3/8" x 1/2" 1.02" 0.87" 0.08
    20060
    (20-060)     		1/2" x 1/4" 1.36" 0.81" 0.11
    20061
    (20-061)     		1/2" x 3/8" 1.30" 0.81" 0.12
    20063
    (20-063)     		1/2" x 1/2" 1.23" 0.87" 0.14

    * Furnished with gaskets

    Dimension data can change without notice.
