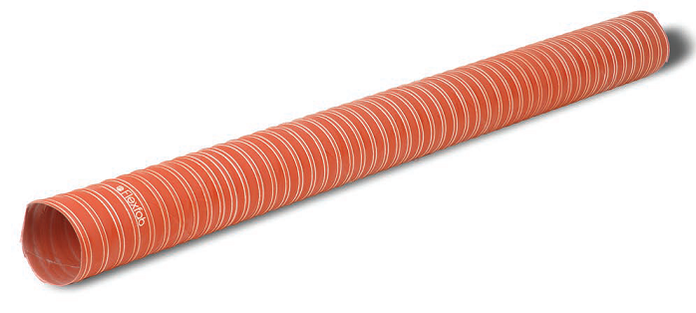

2005-275 FlexFab Series 2005 2-Ply Industrial SIL-FAB2™ Wire Reinforced Duct - 2.75" ID - 2.89" OD - 12ft

2005-275 by FlexFab | Series 2005 | 2-ply Industrial SIL-FAB2™ Wire Reinforced Duct | 2.75" ID | 2.89" OD | 12ft Length

Save $13.39 Save $13.39
$133.90
$133.90 - $133.90
$133.90
$120.51
$120.51 - $120.51
$120.51

Flexfab Industrial Hose - Series 2005 - Industrial SIL-FAB2™ Wire Reinforced Duct

Package Quantity: 12 FT

Specifications for Variant SKU: 2005-275 Flexfab
Brand: SIL-FAB2
Series: Series 2005
Hose Color(s): Orange
Internal Diameter: 2.75in
Outer Diameter: 2.89in
Tubing Construction: Silicone
Cover Construction: Silicone
Overview:
  • Comes in 12' Lengths
  • 2-Ply Silicone-coated fiberglass fabric with Nylon Rod Reinforcement (No cuffs)
Construction:
  • Double-Ply, Silicone-Coated Woven Fiberglass Hose
  • Chemically treated, helically wound, spring steel wire for flexibility
  • Double, continuous filament, silicone treated fiberglass cord
Specifications:
  • Vulcanized for long service life
  • Lightweight, non-kinking
  • Bend radius equals the inside diameter for hoses
  • Temperature range is -65°F (-54°C) to +500°F (+260°C)
  • Working pressure is 1/3 of the burst pressure
Applications:
  • Designed for medium pressure handling of air, dust, fumes, and light powders
  • Not recommended for handling liquids or abrasive materials
  • Not recommended for charge air applications
Part Number Inside Diameter Outside Diameter Burst PressurePSI Max. Leakage.CFM Max. Neg.PSI WallThickness WeightOZ/FT
2005-100 1.00" 1.14" 180 PSI 0.015 15 PSI 0.07 2.00 oz/ft
2005-125 1.25" 1.39" 180 PSI 0.015 15 PSI 0.07 2.50 oz/ft
2005-150 1.50" 1.64" 165 PSI 0.015 13 PSI 0.07 3.00 oz/ft
2005-175 1.75" 1.89" 165 PSI 0.02 13 PSI 0.07 3.50 oz/ft
2005-200 2.00" 2.14" 150 PSI 0.02 10 PSI 0.07 4.00 oz/ft
2005-225 2.25" 2.39" 150 PSI 0.02 10 PSI 0.07 4.50 oz/ft
2005-250 2.50" 2.64" 135 PSI 0.025 8 PSI 0.07 5.00 oz/ft
2005-275 2.75" 2.89" 135 PSI 0.025 8 PSI 0.07 6.00 oz/ft
2005-300 3.00" 3.14" 135 PSI 0.03 7 PSI 0.07 6.20 oz/ft
2005-325 3.25" 3.39" 135 PSI 0.03 6 PSI 0.07 6.70 oz/ft
2005-350 3.50" 3.64" 120 PSI 0.035 6 PSI 0.07 7.20 oz/ft
2005-375 3.75" 3.89" 120 PSI 0.035 5 PSI 0.07 7.80 oz/ft
2005-400 4.00" 4.14" 120 PSI 0.04 5 PSI 0.08 8.40 oz/ft
2005-450 4.50" 4.64" 105 PSI 0.05 4 PSI 0.08 9.60 oz/ft
2005-500 5.00" 5.14" 105 PSI 0.06 4 PSI 0.08 10.70 oz/ft
2005-550 5.50" 5.64" 90 PSI 0.08 3 PSI 0.08 11.80 oz/ft
2005-600 6.00" 6.14" 90 PSI 0.1 3 PSI 0.08 13.00 oz/ft
2005-800 8.00" 8.14" 45 PSI 0.15 3 PSI 0.08 17.80 oz/ft
2005-1000 10.00" 10.14" 24 PSI 0.2 2 PSI 0.08 22.60 oz/ft
2005-1200 12.00" 12.14" 12 PSI 0.3 2 PSI 0.08 27.10 oz/ft
*Specifications for reference only. Specific test data available on request.
Flexfab

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
