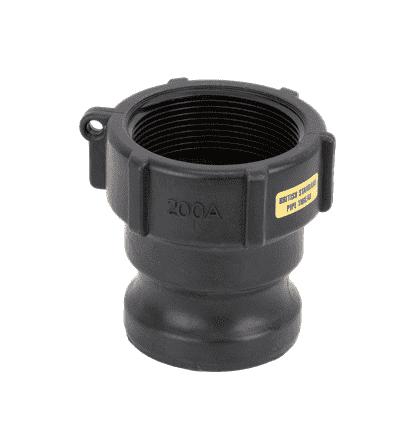

200ABP Banjo Polypropylene Cam Lever Coupling - Part A - 2" Male Adapter x 2" Female British Pipe Thread (Parallel)

200ABP by Banjo | Cam Lever Coupling | Part A | 2" Male Adapter x 2" Female British Pipe Thread (Parallel) | Gasket: EPDM | Polypropylene | Pack of 10

Save $21.28 Save $21.28
$68.88
$68.88 - $68.88
$68.88
$47.60
$47.60 - $47.60
$47.60



Banjo Cam Lever Couplings - Polypropylene Cam Lever Couplings - 2" Series

Package Quantity: 10 EA

Specifications for Variant SKU: 200ABP Banjo | 10 |
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 2in Male Cam & Groove, 2in Female BSPP
Material(s): Polypropylene
Applications:
  • Agriculture
  • Industrial
  • Fluids
Features:
  • Stainless steel rings, arms & pins
  • Most complete line of polypropylene couplings available
  • Versatile - interchangeable with all types of cam lever couplers
  • Precision molded - insures a uniform and accurate fit
  • Durable - Polypropylene is glass reinforced for rugged strength and durability
  • Smooth operating - finger rings are designed for easy opening of cam levers
  • Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread
  • BSP threads available 1" - 3" sizes (excluding 1-1/4")
  • Operating conditions:
    • 3/8" thru 2" - 100 PSI at 0° F; 125 PSI at 70° F; 70 PSI at 150° F.
    • 2-1/2", 3" & 4" Cap - 50 PSI; Couplings 75 PSI max
  • Economical and superior in performance
  • Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available (Only for 200ABP)
  • Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL!
  • WARNING: Couplings should not be disconnected under pressure or with liquid in the line.
  • For other sizes & replacement parts, see: Banjo Polypropylene Cam Lever Couplings & Replacement Parts
Guide:

Part Number Type End Type Max PSI Gasket
200A Part A 2" Male Adapter x 2" Female NPT 225 PSI None
200AB Part A 2" Male Adapter x 2" Female British Standard Pipe Thread 225 PSI None
200ABP Part A 2" Male Adapter x 2" Female British Pipe Thread (Parallel) Conditions
(PSI details in feature)		 EDPM
Available in: Buna & FKM
200B Part B 2" Female Coupler x 2" Male NPT 225 PSI EPDM
201B Part B 2" Female Coupler x 2" Extended Male NPT 200 PSI EPDM
200BB Part B 2" Female Coupler x 2" Male British Standard Pipe Thread 225 PSI EPDM
200C Part C 2" Female Coupler x 2" Hose Shank 225 PSI EPDM
200D Part D 2" Female Coupler x 2" Female NPT 200 PSI EPDM
200DB Part D 2" Female Coupling x 2" Female British Standard Pipe Threads 200 PSI None
200E Part E 2" Male Adapter x 2" Hose Shank 200 PSI None
200F Part F 2" Male Adapter x 2" Male NPT 300 PSI None
200FB Part F 2" Male Adapter x 2" Male British Standard Pipe Thread 300 PSI None
200CAP Part PL 2" Cap - Male Adapter 200 PSI EPDM
200CAPSH Part Cap 2" Cap - Male Adapter with Short Arms 200 PSI EPDM
200PL Part Plug 2" Plug - Female Coupler 225 PSI None

Note: 1/4", 3/8" and 1/2" series couplings interchange with 3/4" size couplings. Coupling ends are 3/4" size 1-1/4" series couplings interchange with 1" size couplings. Coupling ends are 1" size. 1-1/2" x 1-1/4" couplings interchange with 1-1/2" size couplings. Coupling ends are 1-1/2" size
