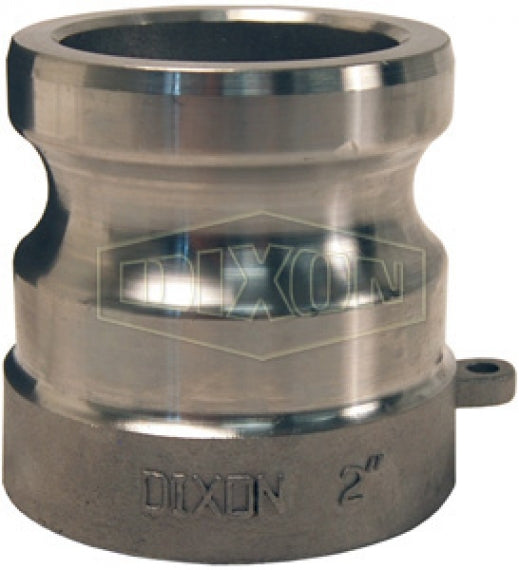

200AWSPSS by Dixon Valve | Cam & Groove Adapter for Welding | 2" Adapter Socket Weld x Schedule 40 Pipe | 316 Stainless Steel

200AWSPSS by Dixon Valve | Cam & Groove Adapter for Welding | 2" Adapter Socket Weld x Schedule 40 Pipe | 316 Stainless Steel

Save $50.98 Save $50.98
$127.45
$127.45 - $127.45
$127.45
$76.47
$76.47 - $76.47
$76.47

Dixon Valve
Cam & Groove Adapter for Welding | Adapter Socket Weld x Schedule 40 Pipe

Designed for use with liquids.
Specifications for Variant SKU: 200AWSPSS Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Weld End, 2in Weld End, Some Ends Match
Material(s): 316 Stainless Steel
Safety Notes:
  • Dixon® and Boss-Lock cam & groove couplings do not interchange in the 8" size.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Final weld preparation, as with all weld fittings, is the responsibility of the welder.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size Bore Maximum Operating Pressure
- 75AWSPSS 3/4" 1.065" 250 PSI
- 100AWSPSS 1" 1.330" 250 PSI
150AWSPAL 150AWSPSS 1-1/2" 1.915" 250 PSI
200AWSPAL 200AWSPSS 2" 2.390" 250 PSI
300AWSPAL 300AWSPSS 3" 3.530" 125 PSI
400AWSPAL 400AWSPSS 4" 4.530" 100 PSI
500AWSPAL 500AWSPSS 5" 5.593" 75 PSI
600AWSPAL 600AWSPSS 6" 6.655" 75 PSI
800AWSPAL - 8" 8.711" 50 PSI
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
