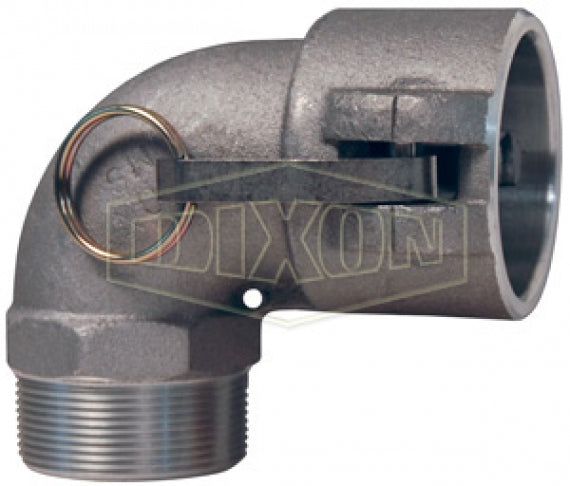

200B-90AL by Dixon Valve | Cam & Groove Coupler | 90° Elbow | Type B | 2" Coupler x 2" Male NPT | Aluminum

Save $53.46

$133.65

$133.65 - $133.65

$133.65

$80.19

$80.19 - $80.19

$80.19

Dixon Valve
Cam & Groove Coupler | 90° Elbow | Type B | Coupler x Male NPT

Designed for use with liquids.

Specifications for Variant SKU: 200B-90AL Dixon
Shape (Orientation):	90 Degree
Cam Type:	Type B
Ends Configuration:	2in Female Cam & Groove, 2in Male NPT
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size	Maximum Operating Pressure
150B-90AL		1-1/2"	250 PSI
200B-90AL	200B-90SS*	2"	250 PSI
	300B-90SS*	3"	125 PSI

* Parts are produced as a welded fabrication.
