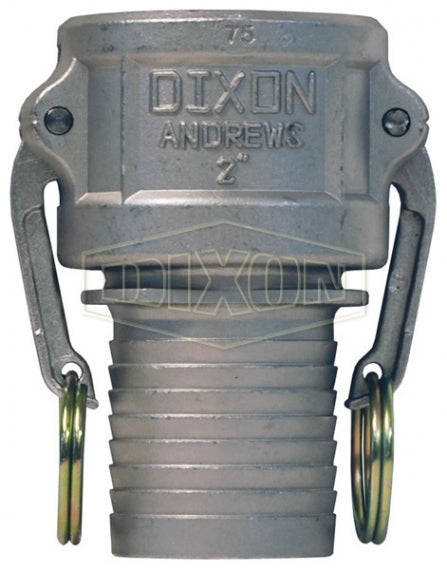

200CNOSSS by Dixon Valve | Cam & Groove Coupler | Type C | 2" Coupler x 2" Notched NOS Shank | 316 Stainless Steel

$60.17

Dixon Valve
Cam & Groove Coupler | Type C | Coupler x Notched NOS Shank

Coupling can be removed from a damaged hose by cutting away the ferrule, without necessarily damaging the fitting.

After inspection of the fitting to determine its suitability for reuse, it can be reinstalled into another hose by using a new ferrule.


Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 200CNOSSS Dixon
MAWP: 250
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 2in Female Cam & Groove X 2in Hose Barb
Material(s): 316 Stainless Steel
Features:
  • System allows you to better manage your inventories, you can stock one stem and two ferrules, and cover the same hose range with less inventory, you must purchase a fitting and the matching ferrule to create an assembly.
Note:
  • For hose outside diameters of 2-4/64" and below, the couplings are crimp only.
  • For hose outside diameters of 2-5/64" and above, the couplings can be crimped or swaged.
  • Only use the NOS shank with the NOS ferrules.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • You must purchase a fitting and the matching ferrule to create an assembly.
  • Due to differences in dimensions and tolerances for safety reasons, do not use other manufacturer's stems or ferrules with Dixon products.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
Part Number Material Size Max. Operating Pressure
150CNOSSS 316 Stainless Steel 1-1/2" 250 PSI
200CNOSSS 316 Stainless Steel 2" 250 PSI
300CNOSSS 316 Stainless Steel 3" 125 PSI
