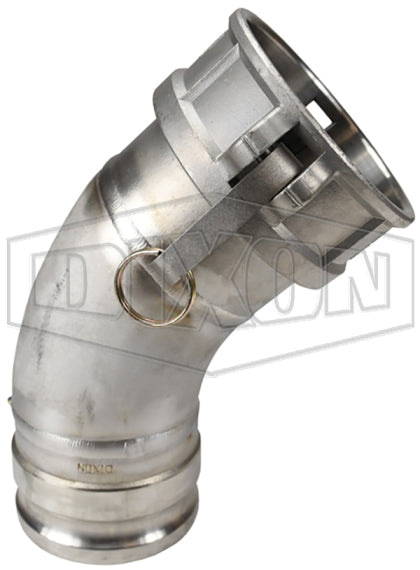

200DA-45SS by Dixon Valve | Cam & Groove Coupling | 45° Elbow | Type DA | 2" Adapter x 2" Coupler | 316 Stainless Steel

Save $27.10

$381.09

$381.09 - $381.09

$381.09

$353.99

$353.99 - $353.99

$353.99

Dixon Valve
Cam & Groove Coupler | 45° Elbow | Type F | Adapter x Coupler

Designed for use with liquids.

Quantity

Specifications for Variant SKU: 200DA-45SS Dixon
Shape (Orientation):	45 Degree
Cam Type:	Other
Ends Configuration:	2in Male Cam & Groove, 2in Female Cam & Groove
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Seal: Nitrile Rubber
Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Unplated Malleable Iron Part Number	Size	Maximum Operating Pressure
200DA-45AL*	200DA-45SS*		2"	250 PSI
300DA-45AL	300DA-45SS*		3"	125 PSI
400DA-45AL	400DA-45SS*	400DA-45MI	4"	100 PSI
600DA-45AL			6"	75 PSI

* Parts are produced as a welded fabrication.
