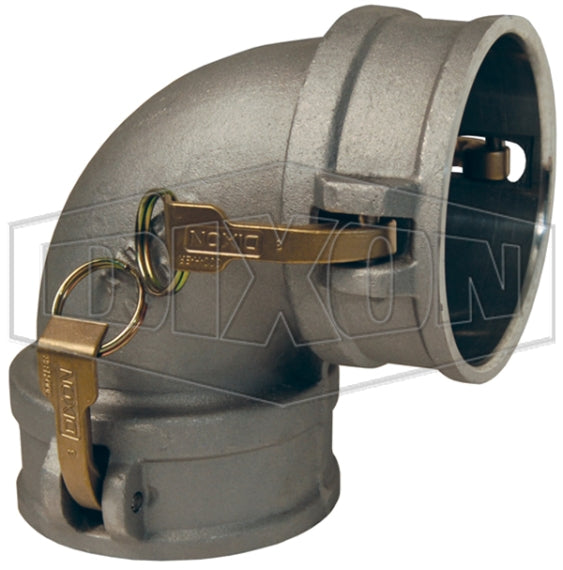

200DD-90AL by Dixon Valve | Cam & Groove Spool Coupler | 90° Elbow | Type DD | 2" Coupler x 2" Coupler | Aluminum

Save $82.34

$205.85

$205.85 - $205.85

$205.85

$123.51

$123.51 - $123.51

$123.51

Dixon Valve
Cam & Groove Coupler | 90° Elbow | Type DD | Coupler x Coupler

Designed for use with liquids.

Specifications for Variant SKU: 200DD-90AL Dixon
Shape (Orientation):	90 Degree
Cam Type:	Type DD (Spool Coupler)
Ends Configuration:	2in Female Cam & Groove, 2in Female Cam & Groove, Some Ends Match
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Seal: Nitrile Rubber
Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size	Maximum Operating Pressure
200DD-90AL	-	2"	250 PSI
300DD-90AL	300DD-90SS*	3"	125 PSI
400DD-90AL	-	4"	100 PSI
600DD-90AL	-	6"	75 PSI

* Parts are produced as a welded fabrication.
