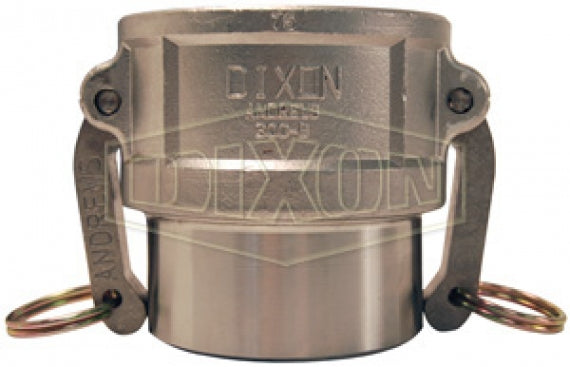

200DWBPSTSS by Dixon Valve | Cam & Groove Coupler for Welding | 2" Coupler Butt Weld x Schedule 40 Pipe/Socket Weld to Nominal Tubing | 316 Stainless Steel

Name: 200DWBPSTSS by Dixon Valve | Cam & Groove Coupler for Welding | 2" Coupler Butt Weld x Schedule 40 Pipe/Socket Weld to Nominal Tubing | 316 Stainless Steel
Brand: Dixon
SKU: 200DWBPSTSS Dixon
Price: 120.24 USD
Availability: InStock

Save $9.21

$129.45

$129.45 - $129.45

$129.45

$120.24

$120.24 - $120.24

$120.24

Dixon Valve
Cam & Groove Coupler for Welding | Coupler Butt Weld x Schedule 40 Pipe/Socket Weld to Nominal Tubing

Designed for use with liquids.

Quantity

Specifications for Variant SKU: 200DWBPSTSS Dixon
Shape (Orientation):	Straight
Ends Configuration:	2in Weld End, 2in Female Cam & Groove
Material(s):	316 Stainless Steel

Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Final weld preparation, as with all weld fittings, is the responsibility of the welder. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size	Bore	Max. Operating Pressure
-	75DWBPSTSS	3/4"	0.765"	250 PSI
-	100DWBPSTSS	1"	1.015"	250 PSI
150DWBPSTAL	150DWBPSTSS	1-1/2"	1.515"	250 PSI
200DWBPSTAL	200DWBPSTSS	2"	2.015"	250 PSI
300DWBPSTAL	300DWBPSTSS	3"	3.015"	125 PSI
400DWBPSTAL	400DWBPSTSS	4"	4.015"	100 PSI
500DWBPSTAL	-	5"	5.015"	75 PSI
600DWBPSTAL	-	6"	6.020"	75 PSI
