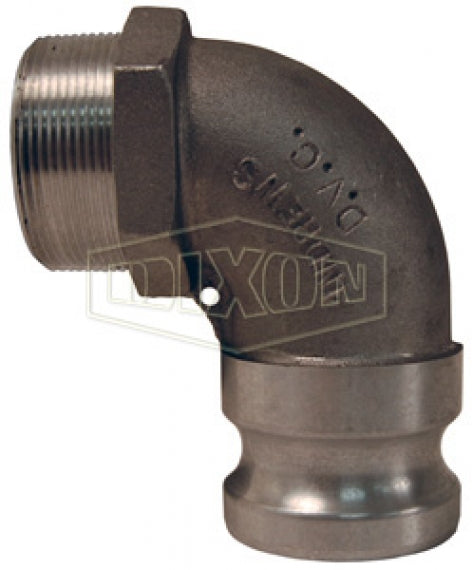

200F90AL by Dixon Valve | Cam & Groove Adapter | 90° Elbow | Type F | 2" Adapter x 2" Male NPT | Aluminum

Save $5.66

$70.89

$70.89 - $70.89

$70.89

$65.23

$65.23 - $65.23

$65.23

Dixon Valve
Cam & Groove Coupler | 90° Elbow | Type F | Adapter x Male NPT

Designed for use with liquids.

Quantity

Specifications for Variant SKU: 200F90AL Dixon
Shape (Orientation):	90 Degree
Cam Type:	Type F
Ends Configuration:	2in Male Cam & Groove, 2in Male NPT
Material(s):	Aluminum

Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon. Pressure rating is based on the seal of the mating part.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size	Maximum Operating Pressure
150F-90AL	-	1-1/2"	250 PSI
200F90AL	200F-90SS*	2"	250 PSI
-	300F-90SS*	3"	125 PSI

* Parts are produced as a welded fabrication.

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
