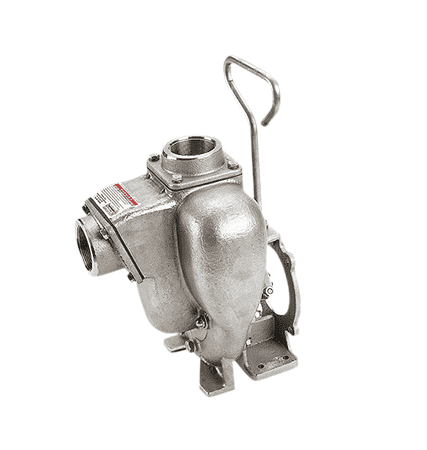

200POSSCF5/8 Banjo 2" 316 Stainless Steel C-Flange Pump with 5/8" Shaft Sleeve

200POSSCF5/8 by Banjo | Centrifugal Pumps | 2" C-Flange Pump with 5/8" Shaft Sleeve | 316 Stainless Steel

Save $1,846.93 Save $1,846.93
$4,617.32
$4,617.32 - $4,617.32
$4,617.32
$2,770.39
$2,770.39 - $2,770.39
$2,770.39

Banjo Self-Priming Centrifugal Pumps
2" 316 Stainless Steel Pumps with Gas Engines & Replacement Parts
Specifications for Variant SKU: 200POSSCF5/8 Banjo
Application: Fluids, Agriculture, Industrial
Features:
  • Carbon ceramic seal consists of 316 stainless steel cup and spring with FKM (viton type) Elastomer
  • All 316 stainless steel wettable internal components: Impeller, Sleeve, Wear plate, Fasteners
  • 316 stainless steel housing
  • Dynamically balanced impeller
Notes:
  • CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump.
  • DO NOT USE WITH FLAMMABLE LIQUIDS
  • NOTE: Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.
Part Number Description Horsepower EPDM Repair Kit Num EPDM Seal Kit Num
2" Stainless Steel Pumps with Gas Engines
200PH5-SS 2" SS Pump with 5.5 HP Honda® Engine with Pull Rope Only 5.5 HP (Made to Order) 17100SS 17035SS
2" Stainless Steel Bearing Pedestal Pumps
200PB-SS 2" SS Bearing Pedestal with 3/4" Straight Shaft (Note: Straight shaft for long coupling to electric motors) N/A (Made to Order) 17100SS 17035SS
2" Stainless Steel Pump Only
200PO-SS 2" SS Pump Only with 3/4" Shaft Sleeve N/A (Made to Order) 17100SS 17035SS
2" Stainless Steel C-Flange Pumps
200POSSCF5/8 2" SS C-Flange Pump with 5.8" Shaft Sleeve N/A (Made to Order) - -
Universal Base Plate Assembly
18700 Base Plate Assembly for 1-1/2", 2" & 3" Cast Iron or Poly Pump (Plate, Coupling Guard, Bolt Bag & Shims) N/A -
 -
 -
18702 Replacement Coupling Guard N/A -
 -
 -
 -

Note: Recommendation for 5.8" Shaft: 56C Frame Size, 3 HP, 3450 RPM, & 5" Max Impeller for close coupling to electric motors. Recommendation for 7.8" Shaft:145TC Frame Size, 3 HP, 3450 RPM, & 5" Max Impeller for close coupling to electric motors.

Replacement Parts for 2" Stainless Steel Pumps
Item Part Number Description Quantity Required
1 17000SS SS Outlet Flange 1
2 17002SS SS Inlet Flange 1
3 17046SS CF Adapter for Electric Motor 1
4 17005 5/8" SS Sleeve Drive 1
4 17006 3/4" SS Sleeve Drive 1
4 17007 7/8" SS Sleeve Drive 1
5 17008SS* SS Impeller 1
6 17009B 5/8" Impeller Nut 1
7 17011SS* SS Wear Plate 1
8 17014 FKM (viton type) Outlet Gasket 1
9 17017 FKM (viton type) Check Valve Assembly Gasket 1
10 17018 Adapter Gasket 1
11 15022 Handle 1
12 17023 5/8" Clamp, 3/4" SS Shaft (Old Style) 1
12 17123 5/8" Clamp, 3/4" SS Shaft (Keyed Clamp) 1
12 17024 7/8" Clamp, 3/4" SS Shaft 1
13 17026SS SS Pump Housing 1
14 17130SS 5/16-18 x 1.00" FHSCS, 316 SS 2
15 V10118 5/16" Lock Washer 18
16 V10119 5/16"-18 SS Hex Nut 6
17 12882A Bearing Pedestal Assembly with 3/4" Shaft 1
18 17040 Bolt 4
19 17035SS FKM (viton type) SS Seal Assembly 1
20 17010 1/2" - 24 x 1" HHCS 1
21 12777SS 1/2" Stainless Steel Plug 1
22 UV15163V O-Ring FKM (viton type) 1
23 17019 5/16" - 18 x 3/4" Cap Screw 8
24 17042 Stud 6
Not Shown 17100SS Pump Repair Kit(Consists of 4,5,7,10,14,19) 1
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
