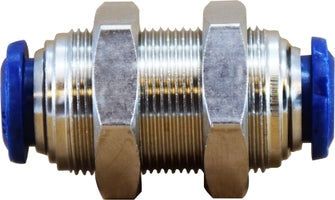

20124N (20-124N) Midland Push-In Fitting - Bulkhead Union - 1/8" Tube OD - Nickel Plated Brass

20124N by Midland | Push-In Fitting | Bulkhead Union | 1/8" Tube OD | Nickel Plated Brass

$6.52 - $6.52
$6.52
$7.29
$7.29 - $7.29
$7.29

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Bulkhead Union

This product will take 2-3 Weeks minimum to ship.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 20124N Midland
Shape (Orientation): Straight
Ends Configuration: 1/8in Push-to-Connect, 1/8in Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Features:
  • Saves time and money
  • No stripped threads
  • No stripped parts
  • Reduce inventory
  • Completely reusable
  • Quick installation
  • No pitch identification
Specifications:
  • Tolerance: +/- .02 on all dimensions
  • Max Operating Pressure: Vacuum to 290PSI
  • Min Temperature: -4°F
  • Max Temperature: 176°F
  • Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer
  • Media: Compressed air, water, vacuum
Component Parts and Materials:
Body Brass - Nickel Plated
Thrust Ring Acetalic Resin/ Glass filled Nylon
Sleeve Brass - Nickel Plated
Gripper Collet Stainless Steel
Safety Ring PA66
Lip Seal (1/8" O-Ring Seal) NBR 70
Thread Seal NBR 70
Crossover Series:
62PLBH 88050
Part Number Tube O.D. A Hex Approx. Weight
(Lbs.)
20124N
(20-124N)		 1/8" 1.03" 0.55" 0.04
20125N
(20-125N)		 5/32" 1.22" 0.67" 0.05
20127N
(20-127N)		 1/4" 1.38" 0.67" 0.06
20123N
(20-123N)		 5/16" 1.45" 0.74" 0.08
20128N
(20-128N)		 3/8" 1.69" 0.94" 0.13
20129N
(20-129N)		 1/2" 1.93" 1.02" 0.15

Dimension data can change without notice.
