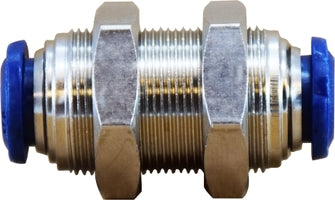

20129N (20-129N) Midland Push-In Fitting - Bulkhead Union - 1/2" Tube OD - Nickel Plated Brass

20129N by Midland | Push-In Fitting | Bulkhead Union | 1/2" Tube OD | Nickel Plated Brass

Save $1.83 Save $1.83
$16.49
$16.49 - $16.49
$16.49
$14.66
$14.66 - $14.66
$14.66

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Bulkhead Union

Inventory @ Manufacturers Warehouse: 22 Units
Specifications for Variant SKU: 20129N Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Push-to-Connect, 1/2in Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Features:
  • Saves time and money
  • No stripped threads
  • No stripped parts
  • Reduce inventory
  • Completely reusable
  • Quick installation
  • No pitch identification
Specifications:
  • Tolerance: +/- .02 on all dimensions
  • Max Operating Pressure: Vacuum to 290PSI
  • Min Temperature: -4°F
  • Max Temperature: 176°F
  • Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer
  • Media: Compressed air, water, vacuum
Component Parts and Materials:
Body Brass - Nickel Plated
Thrust Ring Acetalic Resin/ Glass filled Nylon
Sleeve Brass - Nickel Plated
Gripper Collet Stainless Steel
Safety Ring PA66
Lip Seal (1/8" O-Ring Seal) NBR 70
Thread Seal NBR 70
Crossover Series:
62PLBH 88050
Part Number Tube O.D. A Hex Approx. Weight
(Lbs.)
20124N
(20-124N)		 1/8" 1.03" 0.55" 0.04
20125N
(20-125N)		 5/32" 1.22" 0.67" 0.05
20127N
(20-127N)		 1/4" 1.38" 0.67" 0.06
20123N
(20-123N)		 5/16" 1.45" 0.74" 0.08
20128N
(20-128N)		 3/8" 1.69" 0.94" 0.13
20129N
(20-129N)		 1/2" 1.93" 1.02" 0.15

Dimension data can change without notice.

Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
