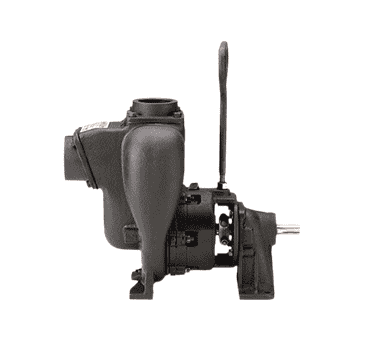

201PBIW Banjo 2" Cast Iron Wet Seal Pump with Bearing Pedestal

201PBIW by Banjo | Centrifugal Pumps | 2" Cast Iron Wet Seal Pump with Bearing Pedestal

Save $673.94 Save $673.94
$1,684.85
$1,684.85 - $1,684.85
$1,684.85
$1,010.91
$1,010.91 - $1,010.91
$1,010.91

Banjo® Liquid Handling Products
Banjo Self-Priming Centrifugal Pumps
2" Cast Iron Wet Seal Pumps with Gas Engines & Replacement Parts
Specifications for Variant SKU: 201PBIW Banjo

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Features:
  • Run Dry Capability
  • FKM (viton type) double seal contained in ethylene glycol reservoir
  • Dynamically balanced impeller
  • All stainless steel hardware
  • Available in cast iron or 316 stainless steel, with bearing pedestal, gas engine or pump only
Notes:
  • Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.
  • DO NOT USE WITH FLAMMABLE LIQUIDS.

Part Number Description Horsepower
2" Cast Iron Wet Seal Pumps with Gas Engines
201PIH5W 2" Cast Iron Wet Seal Pump with 5.5 HP Honda® Engine 5.5 HP ---
2" Cast Iron Wet Seal Beating Pedestals
201PBIW 2" Cast Iron Wet Seal Pump with Bearing Pedestal N/A (Made to Order)
2" Cast Iron Wet Seal Pump Only
201POIW 2" Cast Iron Wet Seal Pump Only N/A (Made to Order)
Polyethylene Suction Basket Strainer
200SBS 2" Female Thread Poly Basket N/A ---
300SBS 3" Female Thread Poly Basket N/A ---

Replacement Parts for 2" Cast Iron Wet Seal Pumps
Item Part Number Description Quantity Required
1 V10118 5/16" Lock Washer 6
2 V10119 5/16"-18 Hex Nut 6
4 17010 1/2" Hex Nut 1
5 17018 Gasket Adapter 1
6 17123 5/8" Clamp, 3/4" Shaft Assembly Keyed 1
7 17226 Pump Housing 1
9 12882A Bearing Pedestal 1
10 17019 5/16"-18 x 3/4" HHCS 4
11 V10118 5/16" Lock Washer 4
12 17002 Inlet Flange 1
13 17016 EPDM Check Valve Gasket Assembly 1
14 17019 5/16" -18 x 3/4" HHCS 4
15 V10118 5/16" Lock Washer 4
16 17000 Outlet Flange 1
17 17013 EPDM Outlet Gasket 1
18 17242 Housing Stud 6
19 17208 Impeller 1
20 17032 Pipe Plug 1
21 17019 5/16"-18 x 3/4" Cap Screw 4
22 V10118 5/16" Lock Washer 4
23 12777 1/2" Plug 2
24 17202 Cover Plate 1
25 17018 Gasket Adapter 1
26 17201A Reservoir 1
27 17235 FKM (viton type) Mechanical Seal Assembly 1
28 17009B 5/8" Impeller Nut 1
29 17206A Adapter Shaft 1
30 UV15163 O-Ring 2
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
