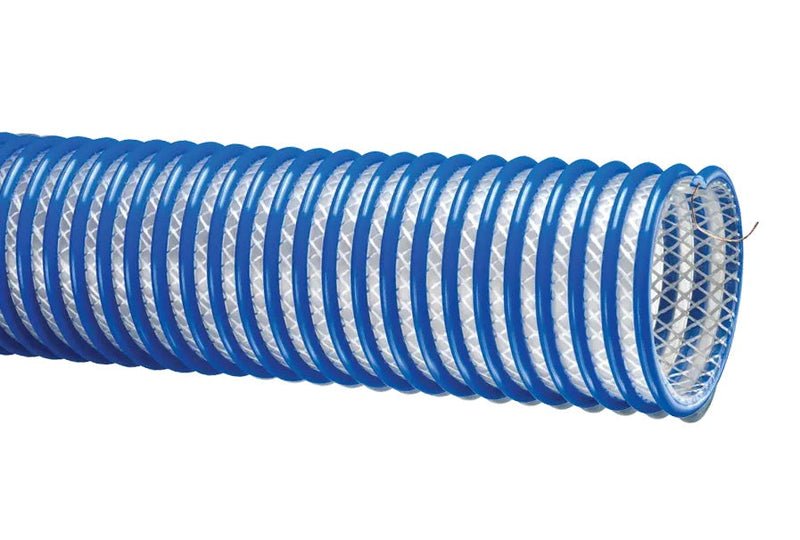

2020-200X100 Tigerflex® by Kuriyama | 2020™ Series | Heavy-Duty Food Grade Fabric Reinforced Material Handling Hose | with Grounding Wire | Polyurethane | 2" ID | 2.65" OD | 100ft Length

Save $503.20

$1,985.20

$1,985.20 - $1,985.20

$1,985.20

$1,482.00

$1,482.00 - $1,482.00

$1,482.00

p>Kuriyama of America Inc.
Tigerflex® | 2020™ Series | Heavy-Duty Food Grade Fabric Reinforced Material Handling Hose with Grounding Wire | Polyurethane

Built for demanding bulk transfer.

Ideal for truck and railcar unloading, heavy-duty abrasive food-grade material handling, and suction and discharge applications.

Made in the USA.

Package Quantity: 100 Foot

Specifications for Variant SKU: 2020-200X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	2020 Series
Hose Color(s):	Blue & Clear/Semi-Clear
Internal Diameter:	2in
Outer Diameter:	2.65in
Tubing Construction:	Polyurethane
Applicable Specs & Approvals:	BSE/TSE, FDA 21 CFR Part 170.199, RoHS Compliant, Applicable USDA Requirements
Special Properties:	Ground Wire in Hose, Outer Helix Protection

Food Grade Material Handling Hose

Tigerflex™ 2020 Series

Heavy duty, abrasion-resistant polyurethane-lined hose for food grade material handling — built for bulk truck and railcar unloading in both suction and discharge service.

⚙

Double-Ply PU Tube

Extra thick, severe-abrasion rated

✓

Food Grade

FDA & USDA compliant liner

◎

Grounding Wire

Helps dissipate static charge

★

See-the-Flow

Transparent construction

1

What is this product used for?

Bulk truck and railcar unloading
Food grade material handling — heavy duty abrasive
Suction and discharge

2

What are the key specifications?

Tube

Extra thick double-ply polyurethane

Reinforcement

Polyester fabric, rigid PVC helix, and grounding wire

Service Temperature Range

-40°F (-40°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)

Compliance

BSE/TSE (02), FDA (03), Phthalate Free (10), RoHS (11), USDA (12)

Origin

Made in the USA

3

What are the main product features?

Extra Thick Abrasion Resistant Double-Ply Polyurethane Tube — Designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
Food Grade Materials — Hose liner (product contact surface) complies with applicable FDA (04) and USDA (12) requirements.
Fabric Reinforcement — Designed with high tensile strength, food grade (05), polyester yarn jacket to handle both suction and higher pressure discharge applications.
Grounding Wire — Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials.
Transparent Construction — "See-the-flow." Allows for visual confirmation of material flow.
"Cold-Flex" Materials — Hose remains flexible in subzero temperatures.
Easy Slide Helix — Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
Oil Resistant Polyurethane Tube — Resists most animal and petroleum based oils.

4

Which sizes or configurations are available?

Part Number	ID	OD	Working Pressure (PSI)		Vacuum Rating (in Hg)		Min. Bending Radius	Length	Weight (lbs/ft)
Part Number	ID	OD	at 68°F	at 104°F	at 68°F	at 104°F	Min. Bending Radius	Length	Weight (lbs/ft)
2" ID
2020-200X100	2" (50.1 mm)	2.65" (67.5 mm)	75 PSI	40 PSI	Full	28 in Hg	9"	100 ft	0.94
3" ID
2020-300X50	3" (76.2 mm)	3.78" (96.0 mm)	70 PSI	35 PSI	Full	28 in Hg	10"	50 ft	1.20
2020-300X100	3" (76.2 mm)	3.78" (96.0 mm)	70 PSI	35 PSI	Full	28 in Hg	10"	100 ft	1.20
4" ID
2020-400X50	4" (101.6 mm)	4.84" (123.0 mm)	65 PSI	30 PSI	Full	28 in Hg	12"	50 ft	1.60
2020-400X100	4" (101.6 mm)	4.84" (123.0 mm)	65 PSI	30 PSI	Full	28 in Hg	12"	100 ft	1.60
5" ID
2020-500X50	5" (127.0 mm)	5.79" (147.0 mm)	45 PSI	22 PSI	28 in Hg	25 in Hg	14"	50 ft	2.45
6" ID
2020-600X25	6" (152.4 mm)	6.93" (176.0 mm)	40 PSI	22 PSI	28 in Hg	25 in Hg	16"	25 ft	2.86
2020-600X50	6" (152.4 mm)	6.93" (176.0 mm)	40 PSI	22 PSI	28 in Hg	25 in Hg	16"	50 ft	2.86

5

Where can I find product documents?

PDF

Kuriyama Tigerflex Hose Specifications Guide PDF

For more information on specification codes and hose details, consult the Kuriyama Tigerflex Hose Specifications Guide.

⚠ CAUTION: Grounding wire is designed to help dissipate static charge when extracted and connected to ground. Hose is not to be used in combustible situations unless it has been determined by the end user the application is not sufficient to result in propagating brush discharge.

Note: Service life may vary depending on operating conditions and type of material being conveyed.
