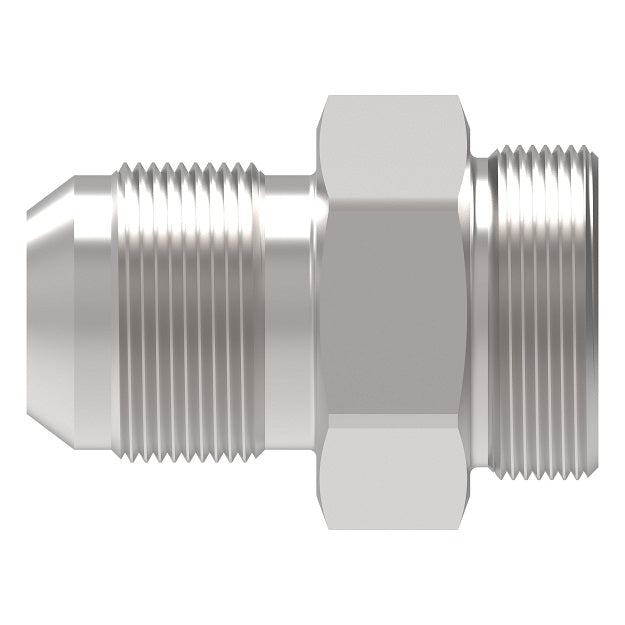

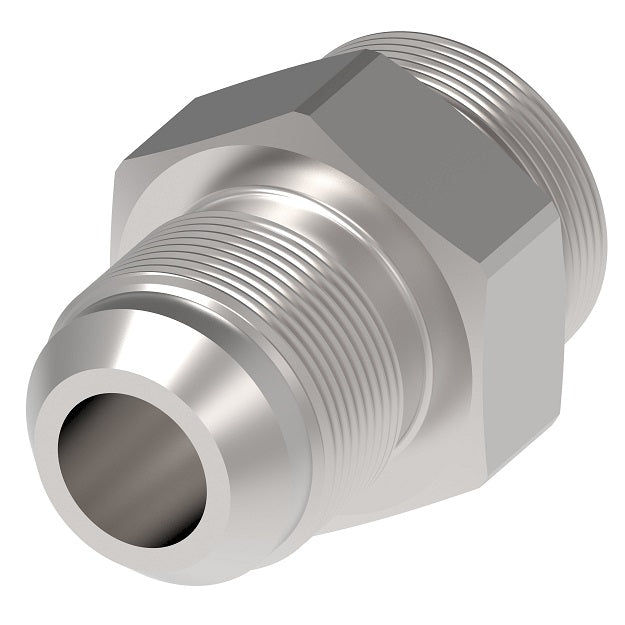

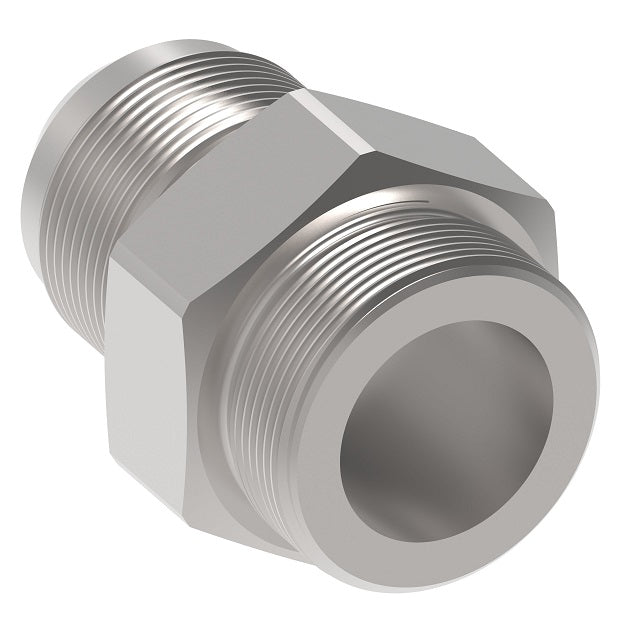

202220-6-8S Aeroquip by Danfoss | Straight Adapter | -06 Male JIC x -08 Male 5400 Series Thread | Steel

202220-6-8S Aeroquip by Danfoss | Straight Adapter | -06 Male JIC x -08 Male 5400 Series Thread | Steel

$45.90 - $45.90
$45.90
$45.90 - $45.90
$45.90

Aeroquip® by Danfoss
JIC Adapter
Male JIC x Male 5400 Series Thread
Straight

For use with 5400 Series Low Air Inclusion Refrigerant Quick Disconnect Couplings.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 202220-6-8S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male JIC, 1/2in Male NPTF
Material(s): Brass
Seal Material(s): Neoprene
Brass
Part number		 Steel
Part number		 Body Size Thread Tube OD Size
202220-4-4B 202220-4-4S 1/4" 7/16-20 1/4"
- 202220-6-4S 1/4" 9/16-18 3/8"
- 202220-6-8S 1/2" 9/16-18 3/8"
202220-8-8B 202220-8-8S 1/2" 3/4-16 1/2"
- 202220-10-12S 3/4" 7/8-14 5/8"
- 202220-12-12S 3/4" 1-1/16-12 3/4"
- 202220-16-16S 3/4" 1-3/16-12 1"
