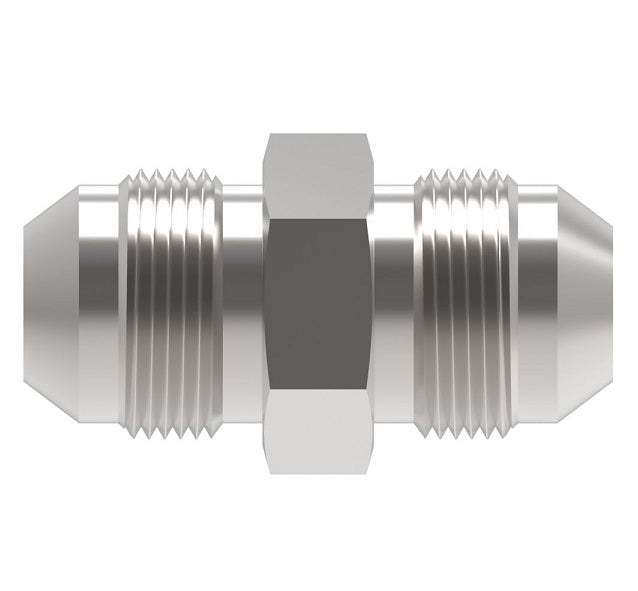

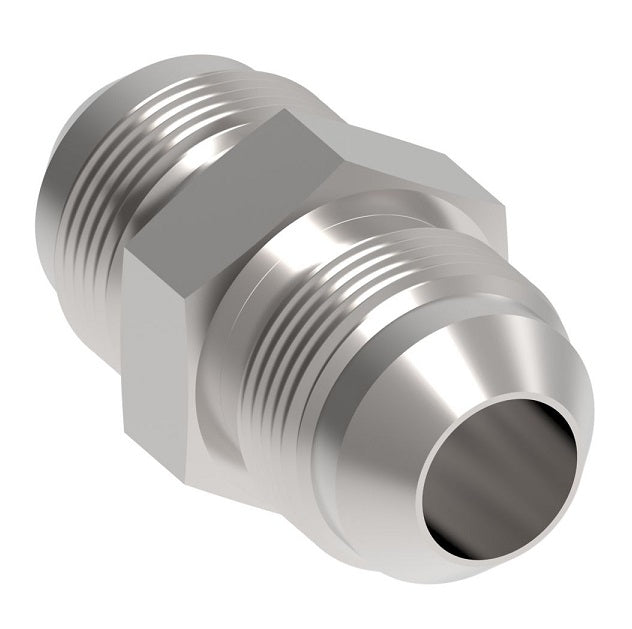

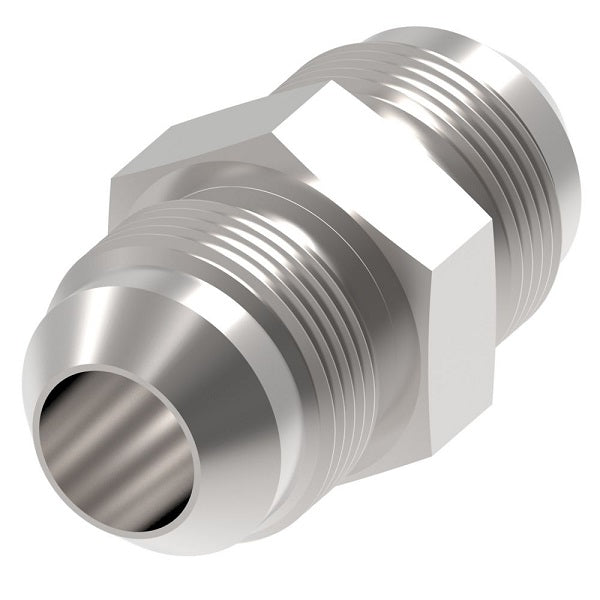

2027-10-6S Aeroquip by Danfoss | Male 37° JIC Flare Union Adapter | -10 Male 37° JIC Flare x -06 Male 37° JIC Flare | Steel
2027-10-6S Aeroquip by Danfoss | Male 37° JIC Flare Union Adapter | -10 Male 37° JIC Flare x -06 Male 37° JIC Flare | Steel
2027-10-6S Aeroquip by Danfoss | Male 37° JIC Flare Union Adapter | -10 Male 37° JIC Flare x -06 Male 37° JIC Flare | Steel
2027-10-6S Aeroquip by Danfoss | Male 37° JIC Flare Union Adapter | -10 Male 37° JIC Flare x -06 Male 37° JIC Flare | Steel

2027-10-6S Aeroquip by Danfoss | Male 37° JIC Flare Union Adapter | -10 Male 37° JIC Flare x -06 Male 37° JIC Flare | Steel

$14.66 - $14.66
$14.66
$14.66 - $14.66
$14.66

Aeroquip® by Danfoss
Male 37° JIC Flare Union Adapter
Male 37° JIC Flare x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2027-10-6S Danfoss
Shape (Orientation): Straight
Ends Configuration: 5/8in Male JIC, 3/8in Male JIC
Material(s): Steel
Part Number
Steel		 Part Number
Brass		 Part Number
Stainless Steel 		Tube O.D. Thread T1 Thread T2 A B
2027-2-2S - - 0.13" 5/16-24 5/16-24 1.17" 0.44"
2027-3-3S - - 0.19" 3/8-24 3/8-24 1.23" 0.44"
2027-4-3S - - 0.19" 7/16-20 3/8-24 1.30" 0.50"
2027-4-4S 2027-4-4B 259-2027-4-4 0.25" 7/16-20 7/16-20 1.37" 0.50"
2027-5-4S - - 0.25" 1/2-20 7/16-20 1.37" 0.56"
2027-5-5S - - 0.31" 1/2-20 1/2-20 1.37" 0.56"
2027-6-4S - - 0.25" 9/16-18 7/16-20 1.40" 0.62"
2027-6-5S - - 0.31" 9/16-18 1/2-20 1.40" 0.62"
2027-6-6S - 259-2027-6-6 0.38" 9/16-18 9/16-18 1.41" 0.62"
2027-8-4S - - 0.25" 3/4-16 7/16-20 1.51" 1.81"
2027-8-6S - - 0.38" 3/4-16 9/16-18 1.52" 0.81"
2027-8-8S - 259-2027-8-8 0.50" 3/4-16 3/4-16 1.62" 0.81"
2027-10-6S - - 0.38" 7/8-14 9/16-18 1.68" 0.94"
2027-10-8S - - 0.50" 7/8-14 3/4-16 1.78" 0.94"
2027-10-10S - - 0.63" 7/8-14 7/8-14 1.88" 0.94"
2027-12-8S - - 0.38" 1-1/16-12 3/4-16 1.95" 1.12"
2027-12-10S - - 0.61" 1-1/16-12 7/8-14 2.05" 1.12"
2027-12-12S - 259-2027-12-12 0.75" 1-1/16-12 1-1/16-12 2.16" 1.12"
2027-14-14S - - 0.83" 1-3/16-12 1-3/16-12 2.21" 1.25"
2027-16-12S - - 0.75" 1-5/16-12 1-1/16-12 2.20" 1.38"
2027-16-16S 2027-16-16B 259-2027-16-16 1.00" 1-5/16-12 1-5/16-12 2.25" 1.38"
2027-20-16S - - 1.00" 1-5/8-12 1-5/16-12 2.38" 1.68"
2027-20-20S 2027-20-20B - 1.25" 1-5/8-12 1-5/8-12 2.43" 1.69"
2027-24-24S - - 1.50" 1-7/8-12 1-7/8-12 2.75" 2.00"
2027-32-32S - - 2.00" 2-1/2-12 2-1/2-12 3.40" 2.62"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
