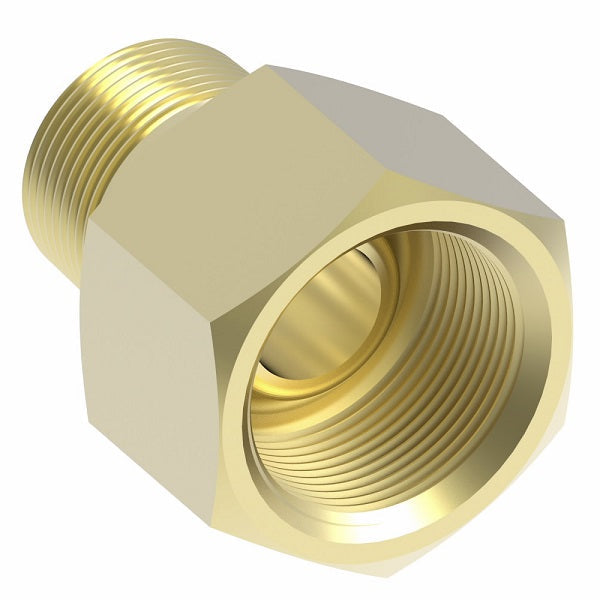

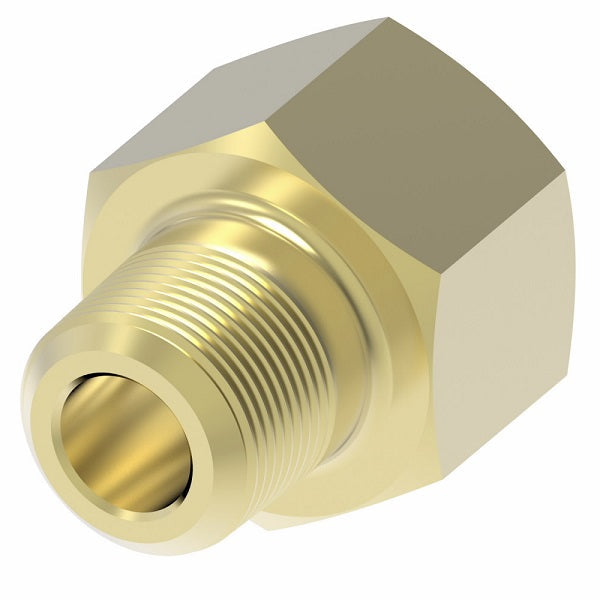

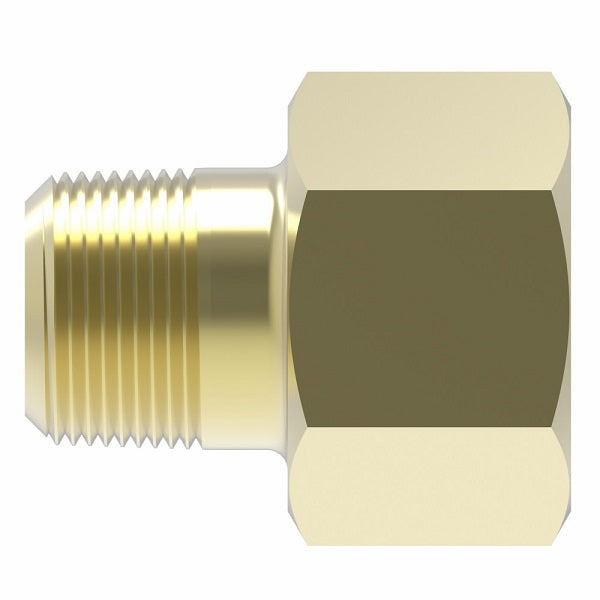

202X3Z by Danfoss | Inverted Flare Male Connector (with Sealant) | 1/8" Male NPTF x 3/16" Female SAE Inverted Flare | Brass
202X3Z by Danfoss | Inverted Flare Male Connector (with Sealant) | 1/8" Male NPTF x 3/16" Female SAE Inverted Flare | Brass
202X3Z by Danfoss | Inverted Flare Male Connector (with Sealant) | 1/8" Male NPTF x 3/16" Female SAE Inverted Flare | Brass
202X3Z by Danfoss | Inverted Flare Male Connector (with Sealant) | 1/8" Male NPTF x 3/16" Female SAE Inverted Flare | Brass

202X3Z by Danfoss | Inverted Flare Male Connector (with Sealant) | 1/8" Male NPTF x 3/16" Female SAE Inverted Flare | Brass

$3.42 - $3.42
$3.42
$3.42 - $3.42
$3.42

Aeroquip® by Danfoss
Inverted Flare Male Connector
Male NPTF x Female SAE Inverted Flare
Straight
Specifications for Variant SKU: 202X3Z Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/8in Male NPTF, 3/16in Female Inverted Flare
Material(s): Brass
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • Hydraulic brake, power steering, fuel lines and transmission cooler lines.
Advantages:
  • Very low cost and reusable.
  • Seats and threads are internal and protected.
  • Compact, excellent vibration life.
  • Short nut affords very close tube bends.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Ref. SAE No. 040102
  • Listed by Underwriter's Laboratories (available on special order) for fuel equipment, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"
Thread Size 5/16-28 3/8-24 7/16-24 1/2-20 5/8-18 11/16-18 3/4-18 7/8-18 1-1/16-16 1-3/16-16 1-5/16-16
Part Number Part Number with Sealant Tube O.D. Male Pipe Thread Hex
C		 D L
202X2 - 1/8" 1/8" 13/32" 0.078" 0.62"
202X3 202X3Z 3/16" 1/8" 15/32" 0.125" 0.70"
202X4 202X4Z 1/4" 1/8" 17/32" 0.188" 0.74"
202X4X4 - 1/4" 1/4" 9/16" 0.188" 0.89"
202X5 202X5Z 5/16" 1/8" 19/32" 0.219" 0.79"
202X5X4 - 5/16" 1/4" 19/32" 0.220" 0.98"
202X6X2 - 3/8" 1/8" 3/4" 0.281" 0.89"
202X6 202X6Z 3/8" 1/4" 3/4" 0.281" 1.03"
202X6X6 - 3/8" 3/8" 3/4" 0.281" 1.01"
202X8X4 - 1/2" 1/4" 29/32" 0.406" 1.08"
202X8 202X8Z 1/2" 3/8" 29/32" 0.406" 1.07"
202X8X8 - 1/2" 1/2" 29/32" 0.406" 1.26"
202X10 - 5/8" 1/2" 1-1/16" 0.531" 1.32"
202X12 - 3/4" 3/4" 1-1/4" 0.625" 1.39"
202X14 - 7/8" 3/4" 1-3/8" 0.750" 1.38"

Pipe end drill may be reduced or increased from seat dimension 'D'.
