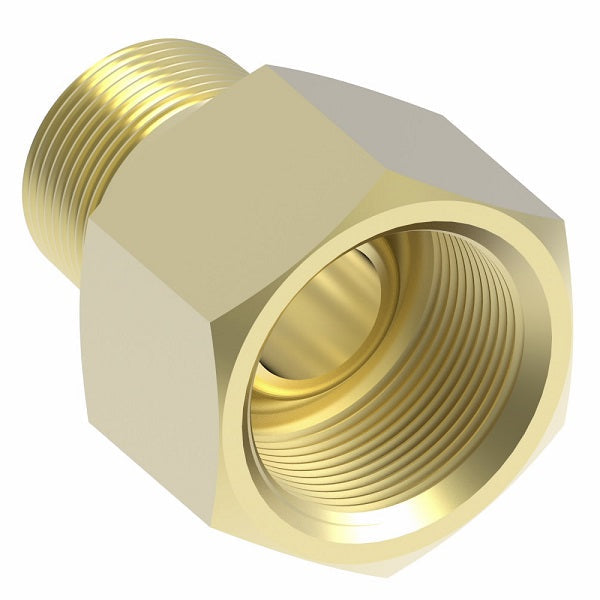

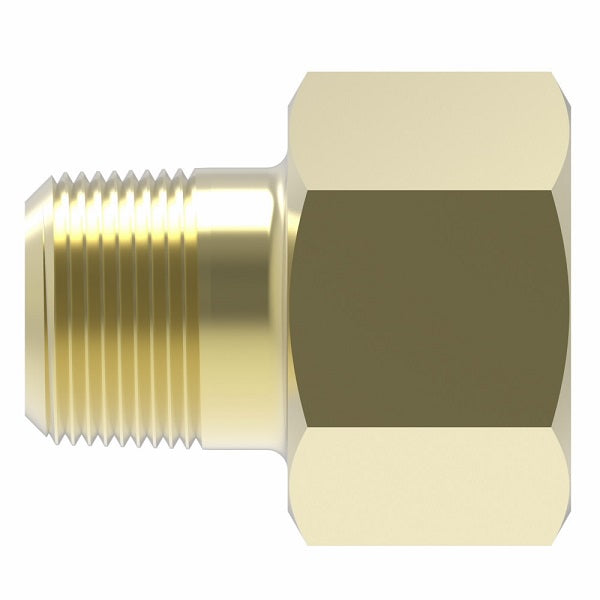

202X5X4 by Danfoss | Inverted Flare Male Connector | 1/4" Male NPTF x 5/16" Female SAE Inverted Flare | Brass
202X5X4 by Danfoss | Inverted Flare Male Connector | 1/4" Male NPTF x 5/16" Female SAE Inverted Flare | Brass
202X5X4 by Danfoss | Inverted Flare Male Connector | 1/4" Male NPTF x 5/16" Female SAE Inverted Flare | Brass
202X5X4 by Danfoss | Inverted Flare Male Connector | 1/4" Male NPTF x 5/16" Female SAE Inverted Flare | Brass

202X5X4 by Danfoss | Inverted Flare Male Connector | 1/4" Male NPTF x 5/16" Female SAE Inverted Flare | Brass

$2.44 - $2.44
$2.44
$2.44 - $2.44
$2.44

Aeroquip® by Danfoss
Inverted Flare Male Connector
Male NPTF x Female SAE Inverted Flare
Straight
Specifications for Variant SKU: 202X5X4 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPTF, 5/16in Female Inverted Flare
Material(s): Brass
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • Hydraulic brake, power steering, fuel lines and transmission cooler lines.
Advantages:
  • Very low cost and reusable.
  • Seats and threads are internal and protected.
  • Compact, excellent vibration life.
  • Short nut affords very close tube bends.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Ref. SAE No. 040102
  • Listed by Underwriter's Laboratories (available on special order) for fuel equipment, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"
Thread Size 5/16-28 3/8-24 7/16-24 1/2-20 5/8-18 11/16-18 3/4-18 7/8-18 1-1/16-16 1-3/16-16 1-5/16-16
Part Number Part Number with Sealant Tube O.D. Male Pipe Thread Hex
C		 D L
202X2 - 1/8" 1/8" 13/32" 0.078" 0.62"
202X3 202X3Z 3/16" 1/8" 15/32" 0.125" 0.70"
202X4 202X4Z 1/4" 1/8" 17/32" 0.188" 0.74"
202X4X4 - 1/4" 1/4" 9/16" 0.188" 0.89"
202X5 202X5Z 5/16" 1/8" 19/32" 0.219" 0.79"
202X5X4 - 5/16" 1/4" 19/32" 0.220" 0.98"
202X6X2 - 3/8" 1/8" 3/4" 0.281" 0.89"
202X6 202X6Z 3/8" 1/4" 3/4" 0.281" 1.03"
202X6X6 - 3/8" 3/8" 3/4" 0.281" 1.01"
202X8X4 - 1/2" 1/4" 29/32" 0.406" 1.08"
202X8 202X8Z 1/2" 3/8" 29/32" 0.406" 1.07"
202X8X8 - 1/2" 1/2" 29/32" 0.406" 1.26"
202X10 - 5/8" 1/2" 1-1/16" 0.531" 1.32"
202X12 - 3/4" 3/4" 1-1/4" 0.625" 1.39"
202X14 - 7/8" 3/4" 1-3/8" 0.750" 1.38"

Pipe end drill may be reduced or increased from seat dimension 'D'.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
