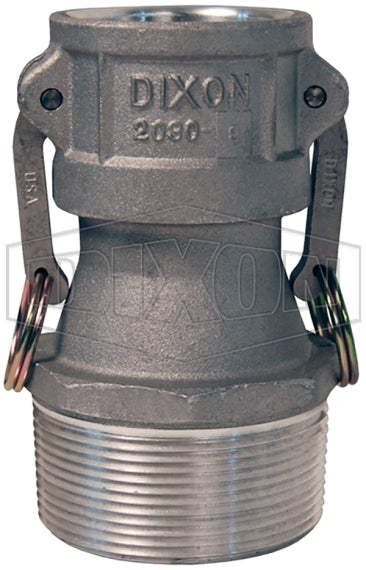

2030-B-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupler | Type B | 2" Coupler x 3" Male NPT | Aluminum

2030-B-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupler | Type B | 2" Coupler x 3" Male NPT | Aluminum

Save $45.75 Save $45.75
$114.38
$114.38 - $114.38
$114.38
$68.63
$68.63 - $68.63
$68.63

Dixon Valve
Cam & Groove Reducer (Jump Size) Coupler | Type B | Coupler x Male NPT

Designed for use with liquids.
Specifications for Variant SKU: 2030-B-AL Dixon
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 2in Female Cam & Groove, 3in Male NPT
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Precision machined to rigid tolerances.
  • Stainless pins will not rust or bind, providing great strength and safety.
  • Recess holds gasket firmly in place - ensures proper placement.
Construction:
  • Nitrile Rubber gasket.
  • Durable stainless steel cam arm pins.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size
Coupler x Male NPT		 Maximum Operating Pressure
1510-B-AL 1510-B-SS* 1-1/2" x 1" 250 PSI
2015-B-AL 2015-B-SS* 2" x 1-1/2" 250 PSI
2030-B-AL 2" x 3" 125 PSI
3020-B-AL 3020-B-SS* 3" x 2" 125 PSI
3040-B-AL 3" x 4" 100 PSI
4030-B-AL 4030-B-SS* 4" x 3" 100 PSI

* Parts are produced as a welded fabrication

Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
