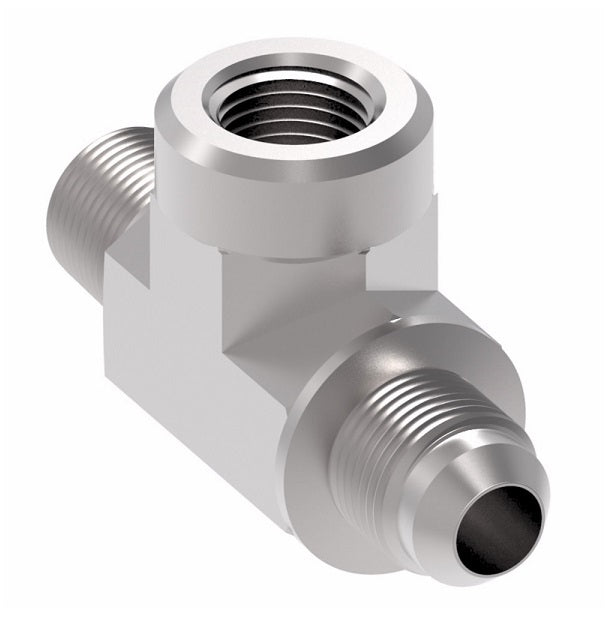

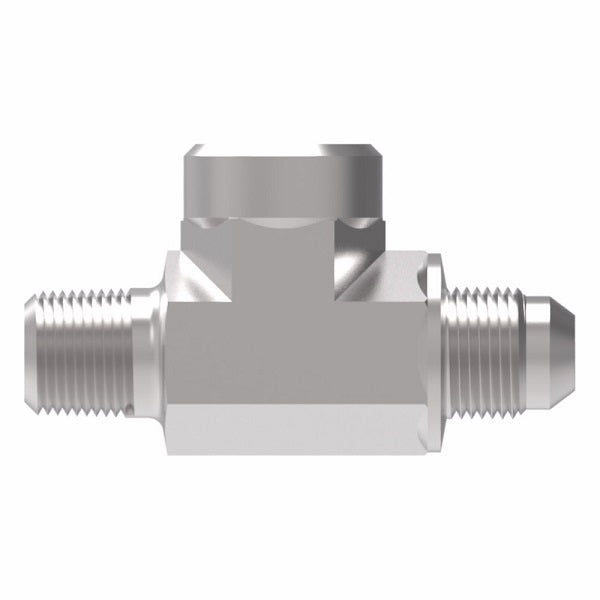

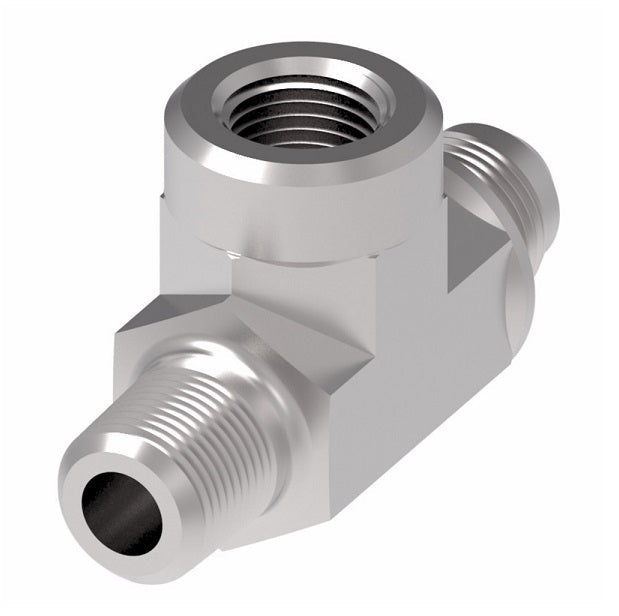

203103-12-12S Aeroquip by Danfoss | External Pipe/37° JIC Flare/Internal Pipe Branch Tee Adapter | -12 Male NPTF x -12 Male 37° JIC Flare x -12 Female NPTF | Steel
203103-12-12S Aeroquip by Danfoss | External Pipe/37° JIC Flare/Internal Pipe Branch Tee Adapter | -12 Male NPTF x -12 Male 37° JIC Flare x -12 Female NPTF | Steel
203103-12-12S Aeroquip by Danfoss | External Pipe/37° JIC Flare/Internal Pipe Branch Tee Adapter | -12 Male NPTF x -12 Male 37° JIC Flare x -12 Female NPTF | Steel
203103-12-12S Aeroquip by Danfoss | External Pipe/37° JIC Flare/Internal Pipe Branch Tee Adapter | -12 Male NPTF x -12 Male 37° JIC Flare x -12 Female NPTF | Steel

203103-12-12S Aeroquip by Danfoss | External Pipe/37° JIC Flare/Internal Pipe Branch Tee Adapter | -12 Male NPTF x -12 Male 37° JIC Flare x -12 Female NPTF | Steel

$40.70 - $40.70
$40.70
$40.70 - $40.70
$40.70

Aeroquip® by Danfoss
External Pipe/37° JIC Flare/Internal Pipe Branch Tee Adapter
Male NPTF x Male 37° JIC Flare x Female NPTF

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 203103-12-12S Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/4in Male NPTF, 3/4in Male JIC, 3/4in Female NPTF
Material(s): Steel
Part Number
Steel		 Tube O.D. Thread P Thread T A B C
203103-2-4S 0.25" 1/8-27 7/16-20 0.78" 1.08" 0.66"
203103-4-6S 0.38" 1/4-18 9/16-18 1.09" 1.23" 0.88"
203103-6-6S 0.38" 3/8-18 9/16-18 1.22" 1.31" 1.02"
203103-6-8S 0.50" 3/8-18 3/4-16 1.22" 1.42" 1.02"
203103-8-10S 0.63" 1/2-14 7/8-14 1.47" 1.64" 1.23"
203103-12-12S 0.75" 3/4-14 1-1/16-12 1.59" 1.89" 1.36"
203103-16-16S 1.00" 1-11-1/2 1-5/16-12 2.09" 2.09" 1.62"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
