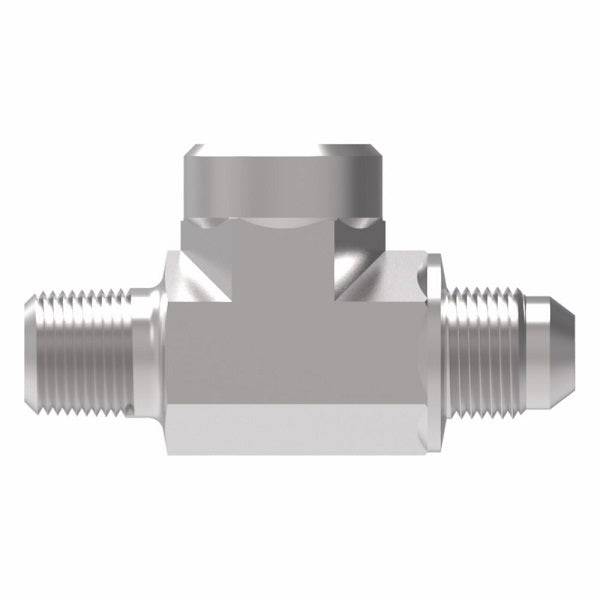

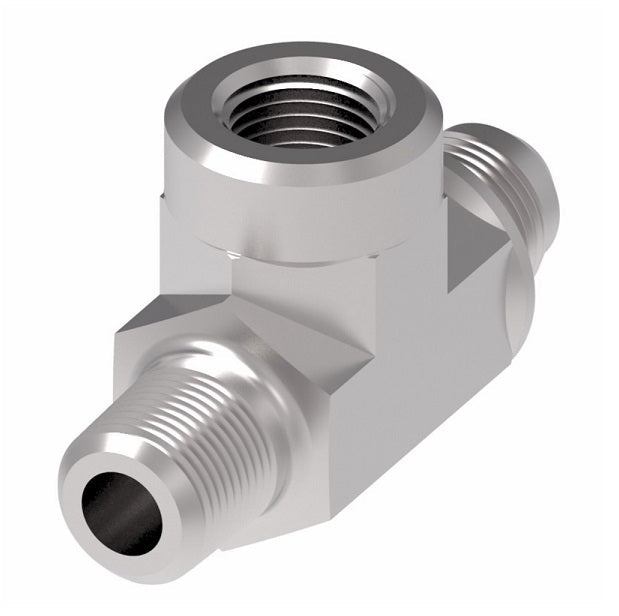

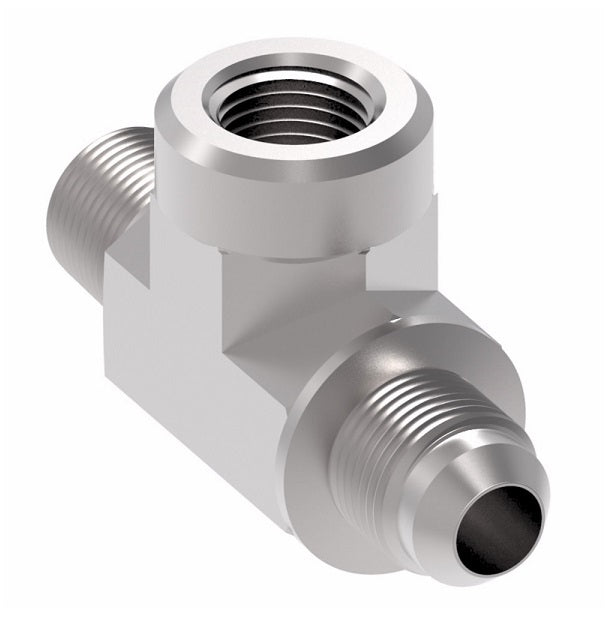

203103-8-10S Aeroquip by Danfoss | External Pipe/37° JIC Flare/Internal Pipe Branch Tee Adapter | -08 Male NPTF x -10 Male 37° JIC Flare x -08 Female NPTF | Steel

203103-8-10S Aeroquip by Danfoss | External Pipe/37° JIC Flare/Internal Pipe Branch Tee Adapter | -08 Male NPTF x -10 Male 37° JIC Flare x -08 Female NPTF | Steel

Name: 203103-8-10S Aeroquip by Danfoss | External Pipe/37° JIC Flare/Internal Pipe Branch Tee Adapter | -08 Male NPTF x -10 Male 37° JIC Flare x -08 Female NPTF | Steel
Brand: Danfoss/Eaton
SKU: 203103-8-10S Danfoss
Price: 27.06 USD
Availability: InStock

$27.06 - $27.06

$27.06

$27.06 - $27.06

$27.06

Aeroquip® by Danfoss
External Pipe/37° JIC Flare/Internal Pipe Branch Tee Adapter
Male NPTF x Male 37° JIC Flare x Female NPTF

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 203103-8-10S Danfoss
Shape (Orientation):	Tee
Ends Configuration:	1/2in Male NPTF, 5/8in Male JIC, 1/2in Female NPTF
Material(s):	Steel


Part Number Steel	Tube O.D.	Thread P	Thread T	A	B	C
203103-2-4S	0.25"	1/8-27	7/16-20	0.78"	1.08"	0.66"
203103-4-6S	0.38"	1/4-18	9/16-18	1.09"	1.23"	0.88"
203103-6-6S	0.38"	3/8-18	9/16-18	1.22"	1.31"	1.02"
203103-6-8S	0.50"	3/8-18	3/4-16	1.22"	1.42"	1.02"
203103-8-10S	0.63"	1/2-14	7/8-14	1.47"	1.64"	1.23"
203103-12-12S	0.75"	3/4-14	1-1/16-12	1.59"	1.89"	1.36"
203103-16-16S	1.00"	1-11-1/2	1-5/16-12	2.09"	2.09"	1.62"
