203103-16-16S Aeroquip by Danfoss | External Pipe/37° JIC Flare/Internal Pipe Branch Tee Adapter | -16 Male NPTF x -16 Male 37° JIC Flare x -16 Female NPTF | Steel
203103-16-16S Aeroquip by Danfoss | External Pipe/37° JIC Flare/Internal Pipe Branch Tee Adapter | -16 Male NPTF x -16 Male 37° JIC Flare x -16 Female NPTF | Steel
203103-16-16S Aeroquip by Danfoss | External Pipe/37° JIC Flare/Internal Pipe Branch Tee Adapter | -16 Male NPTF x -16 Male 37° JIC Flare x -16 Female NPTF | Steel
203103-16-16S Aeroquip by Danfoss | External Pipe/37° JIC Flare/Internal Pipe Branch Tee Adapter | -16 Male NPTF x -16 Male 37° JIC Flare x -16 Female NPTF | Steel

203103-16-16S Aeroquip by Danfoss | External Pipe/37° JIC Flare/Internal Pipe Branch Tee Adapter | -16 Male NPTF x -16 Male 37° JIC Flare x -16 Female NPTF | Steel

$99.47 - $99.47
$99.47
$99.47 - $99.47
$99.47

Aeroquip® by Danfoss

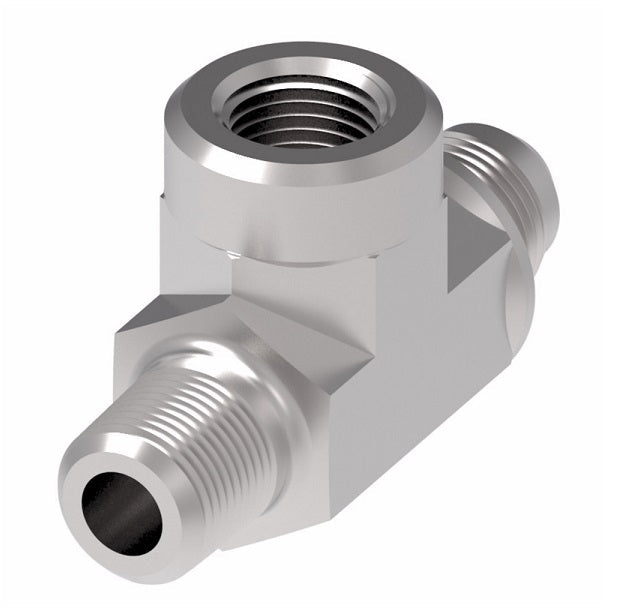

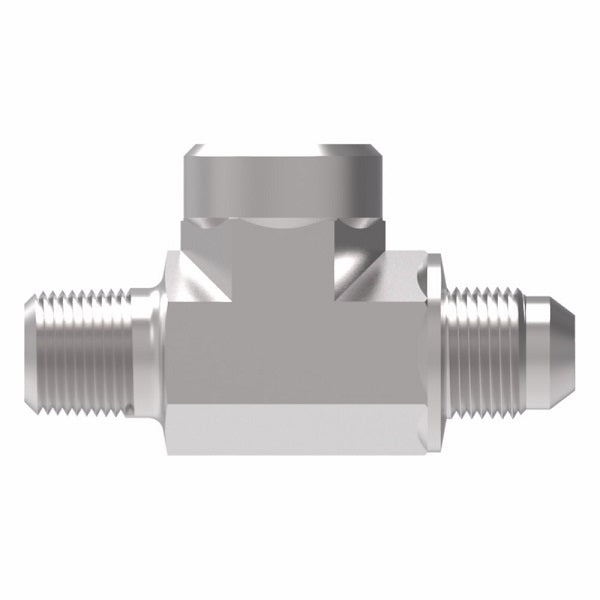

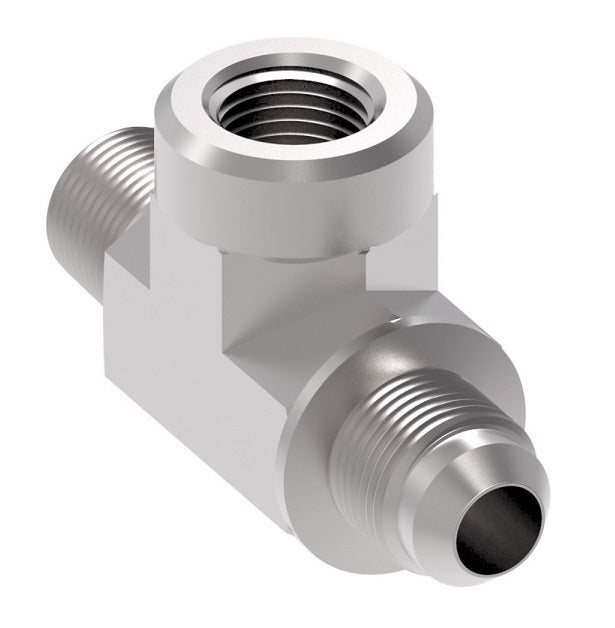

External Pipe/37° JIC Flare/Internal Pipe Branch Tee Adapter
Male NPTF x Male 37° JIC Flare x Female NPTF

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 203103-16-16S Danfoss
Shape (Orientation): Tee
Ends Configuration: 1in Male NPTF, 1in Male JIC, 1in Female NPTF
Material(s): Steel
Part Number
Steel		 Tube O.D. Thread P Thread T A B C
203103-2-4S 0.25" 1/8-27 7/16-20 0.78" 1.08" 0.66"
203103-4-6S 0.38" 1/4-18 9/16-18 1.09" 1.23" 0.88"
203103-6-6S 0.38" 3/8-18 9/16-18 1.22" 1.31" 1.02"
203103-6-8S 0.50" 3/8-18 3/4-16 1.22" 1.42" 1.02"
203103-8-10S 0.63" 1/2-14 7/8-14 1.47" 1.64" 1.23"
203103-12-12S 0.75" 3/4-14 1-1/16-12 1.59" 1.89" 1.36"
203103-16-16S 1.00" 1-11-1/2 1-5/16-12 2.09" 2.09" 1.62"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
