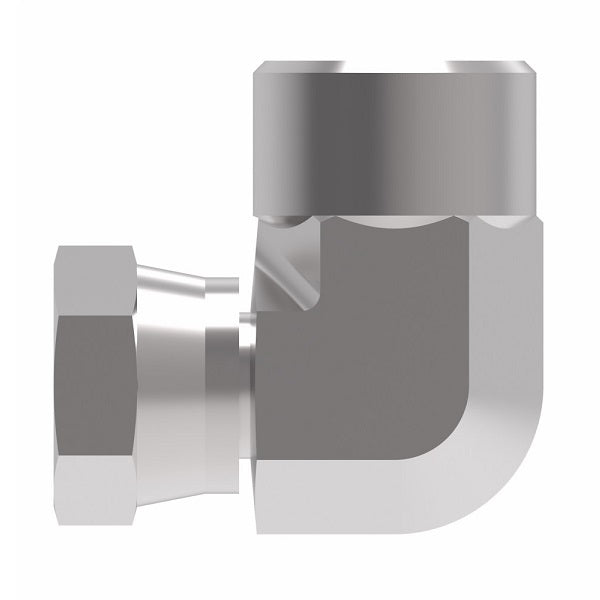

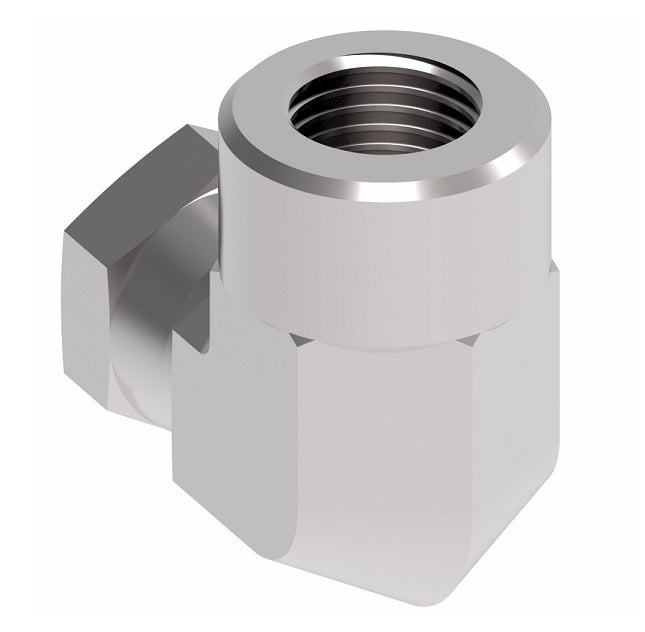

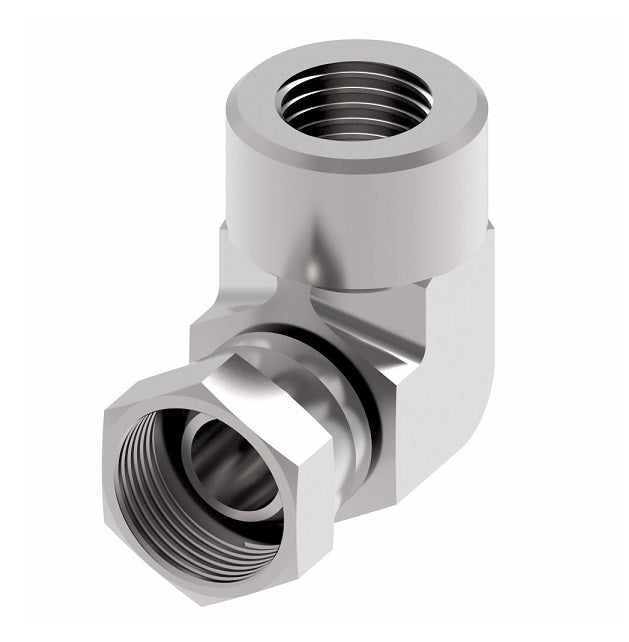

2048-24-24S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 90° Elbow Adapter | -24 Female NPSM x -24 Female NPTF | Steel
2048-24-24S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 90° Elbow Adapter | -24 Female NPSM x -24 Female NPTF | Steel
2048-24-24S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 90° Elbow Adapter | -24 Female NPSM x -24 Female NPTF | Steel
2048-24-24S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 90° Elbow Adapter | -24 Female NPSM x -24 Female NPTF | Steel

2048-24-24S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 90° Elbow Adapter | -24 Female NPSM x -24 Female NPTF | Steel

$161.25 - $161.25
$161.25
$161.25 - $161.25
$161.25

Aeroquip® by Danfoss
Internal Pipe Swivel (NPSM)/internal Pipe
Female NPSM x Female NPTF
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2048-24-24S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/2in Female NPSM, 1-1/2in Female NPTF
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 140231
Steel Part Number Thread P1 Thread P2 A B
2048-2-2S 1/8-27 1/8-27 0.78" 0.66"
2048-4-4S 1/4-18 1/4-18 0.91" 1.00"
2048-4-6S 1/4-18 3/8-18 1.00" 1.09"
2048-4-8S 1/4-18 1/2-14 - -
2048-6-4S 3/8-18 1/4-18 0.97" 0.97"
2048-6-6S 3/8-18 3/8-18 1.09" 1.09"
2048-6-8S 3/8-18 1/2-14 1.10" 1.34"
2048-8-6S 1/2-14 3/8-18 1.08" 1.34"
2048-8-8S 1/2-14 1/2-14 1.08" 1.34"
2048-12-8S 3/4-14 1/2-14 - -
2048-12-12S 3/4-14 3/4-14 1.36" 1.53"
2048-16-16S 1-11-1/2 1-11-1/2 1.56" 1.78"
2048-20-20S 1-1/4-11-1/2 1-1/4-11-1/2 1.82" 2.03"
2048-24-24S 1-1/2-11-1/2 1-1/2-11-1/2 2.02" 2.28"
