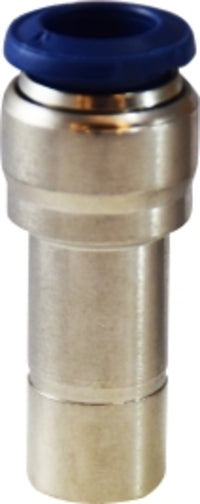

20513N (20-513N) Midland Push-In Fitting - Reducer - 1/2" Tube OD x 1/4" Tube OD - Nickel Plated Brass

20513N by Midland | Push-In Fitting | Reducer | 1/2" Tube OD x 1/4" Tube OD | Nickel Plated Brass

Save $3.49 Save $3.49
$8.73
$8.73 - $8.73
$8.73
$5.24
$5.24 - $5.24
$5.24

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Reducer

Inventory @ Manufacturers Warehouse: 5 Units
Specifications for Variant SKU: 20513N Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Push-to-Connect, 1/4in Push-to-Connect
Material(s): Nickel Plated Brass
Features:
  • Saves time and money
  • No stripped threads
  • No stripped parts
  • Reduce inventory
  • Completely reusable
  • Quick installation
  • No pitch identification
Specifications:
  • Tolerance: +/- .02 on all dimensions
  • Max Operating Pressure: Vacuum to 290PSI
  • Min Temperature: -4°F
  • Max Temperature: 176°F
  • Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer
  • Media: Compressed air, water, vacuum
Component Parts and Materials:
Body Brass - Nickel Plated
Thrust Ring Acetalic Resin/ Glass filled Nylon
Sleeve Brass - Nickel Plated
Gripper Collet Stainless Steel
Safety Ring PA66
Lip Seal (1/8" O-Ring Seal) NBR 70
Thread Seal NBR 70
Crossover Series:
67PPL 88700
Part Number Tube O.D. 2 Tube O.D. 1 A
20510N
(20-510N)		 1/4" 1/8" 1.142"
20511N
(20-511N)		 1/4" 5/32" 1.181"
20512N
(20-512N)		 3/8" 1/4" 1.496"
20513N
(20-513N)		 1/2" 1/4" 1.693"
20514N
(20-514N)		 1/2" 3/8" 1.693"

Dimension data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
