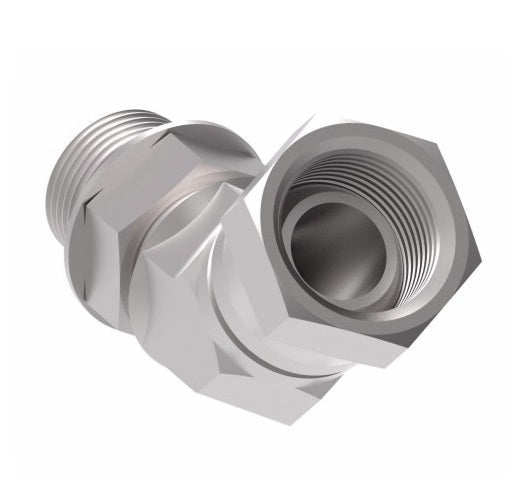

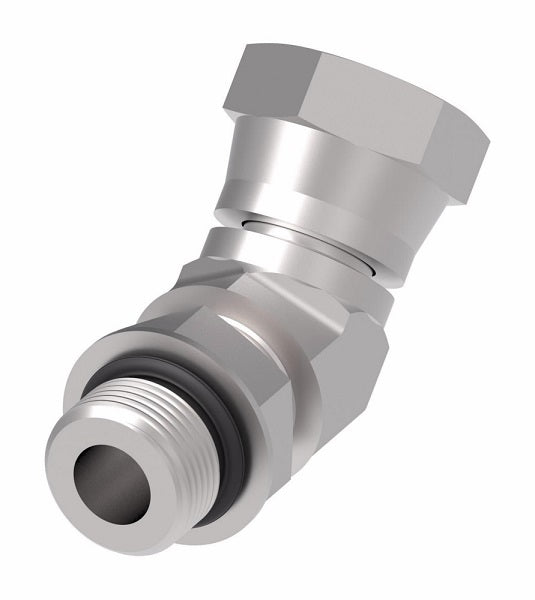

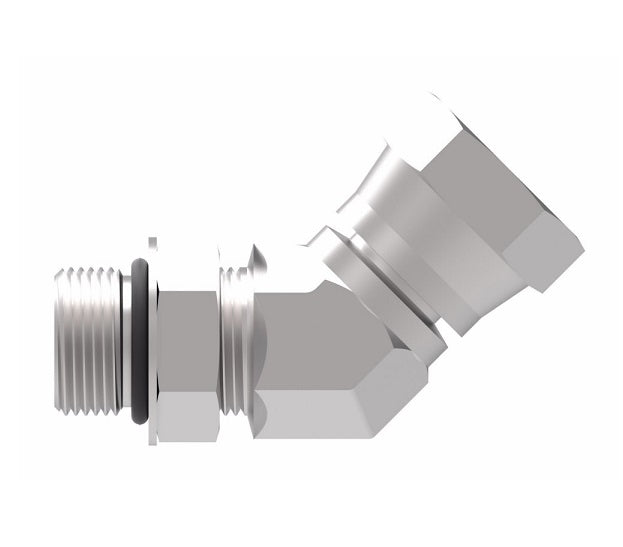

2067-4-4S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB (Adj.) 45° Elbow Adapter | -04 Female NPSM x -04 Male SAE O-Ring Boss | Steel

2067-4-4S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB (Adj.) 45° Elbow Adapter | -04 Female NPSM x -04 Male SAE O-Ring Boss | Steel

Name: 2067-4-4S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB (Adj.) 45° Elbow Adapter | -04 Female NPSM x -04 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: 2067-4-4S Danfoss
Price: 12.14 USD
Availability: InStock

$12.14 - $12.14

$12.14

$12.14 - $12.14

$12.14

Aeroquip® by Danfoss
Internal Pipe NPSM Swivel/SAE ORB (Adj.) Adapter
Female NPSM x Male SAE O-Ring Boss
45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 2067-4-4S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1/4in Female NPSM, 1/4in Male O-Ring Boss
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Swivel

Construction:
Buna-N O-Rings are standard.


Part Number Steel Buna-N O-Ring	Thread P	Thread T	A	B
2067-4-4S	1/4-18	7/16-20	-	-
2067-6-4S	3/8-18	7/16-20	-	-
2067-6-6S	3/8-18	9/16-18	0.92"	1.20"
2067-6-8S	3/8-18	3/4-16	0.92"	1.33"
2067-8-6S	1/2-14	9/16-18	-	-
2067-8-8S	1/2-14	3/4-16	0.91"	1.39"
2067-8-10S	1/2-14	7/8-14	-	-
2067-12-8S	3/4-14	3/4-16	-	-
2067-12-12S	3/4-14	1-1/16-12	1.10"	1.76"
2067-12-16S	3/4-14	1-5/16-12	1.10"	1.89"
2067-16-16S	1-11-1/2	1-5/16-12	1.26"	1.89"
2067-20-20S	1-1/4-11-1/2	1-5/8-12	-	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
