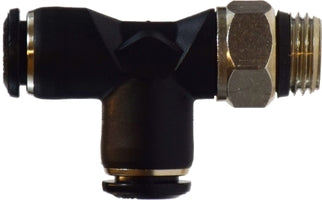

20674 (20-674) Midland Metric Push-In Fitting - Male Swivel Run Tee - 8mm Tube OD x 1/4" Male BSPT Thread - Composite Body

20674 by Midland | Metric Push-In Fitting | Swivel Run | 8mm Tube OD x 1/4" Male BSPT Thread | Tee | Composite Body

Save $1.17

$10.53

$10.53 - $10.53

$10.53

$9.36

$9.36 - $9.36

$9.36

Midland Industries
Brass Fitting - Composite Body Push-in Fitting - Male Swivel Run Tee

The latest generation of composite material is used in the body construction in addition to nickel-plated brass on threaded components and stainless steel on the tube gripper.

Inventory @ Manufacturers Warehouse: 9 Units

Quantity

Specifications for Variant SKU: 20674 Midland
Shape (Orientation):	Tee
Ends Configuration:	8mm Push-to-Connect, 1/4in Male BSPT, 8mm Push-to-Connect
Material(s):	Composite, Brass
Seal Material(s):	NBR 70

Pressure Operating Range:	0 to 220 PSI (15 bar)	Vacuum Operating Range:	0 to 29hg (-.99 bar)
Temperature:	-50 F to + 1750 F (-200 C to + 800 C)	Media:	Compressed air, Non-toxic fluids (water)

Materials of Construcion
1	Body	Composite
2	Body	Nickel Plated Brass
3	Tube Release	Acetal Resin
4	Retainer	Nickel Plated Brass
5	Gripper Ring	Stainless Steel
6	Spacer	Composite
7	Thread Packing	NBR 70
8	O-Ring	NBR 70
9	Thread Seal	NBR 70

Part Number	Tube O.D. (mm)	Male BSPT Thread
20670 (20-670)	4mm	1/8"
20720* (20-720)	4mm	1/4"
20721* (20-721)	5mm	1/8"
20672 (20-672)	6mm	1/8"
20673 (20-673)	6mm	1/4"
20811 (20-811)	8mm	1/8"
20674 (20-674)	8mm	1/4"
20675 (20-675)	8mm	3/8"
20676 (20-676)	10mm	1/4"
20677 (20-677)	10mm	3/8"
20678 (20-678)	12mm	3/8"
20679 (20-679)	12mm	1/2"

* Global Thread

Dimension Data can change without notice.
