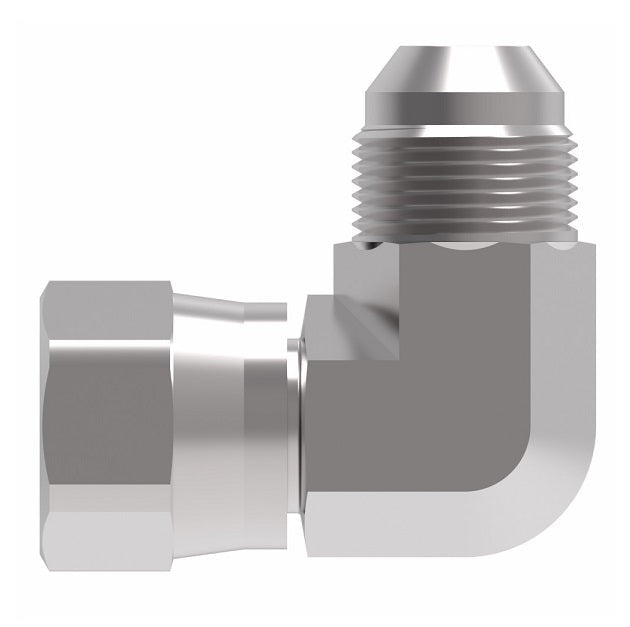

2071-8-10S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -08 Female 37° JIC Flare Swivel x -10 Male 37° JIC Flare | Steel
2071-8-10S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -08 Female 37° JIC Flare Swivel x -10 Male 37° JIC Flare | Steel
2071-8-10S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -08 Female 37° JIC Flare Swivel x -10 Male 37° JIC Flare | Steel
2071-8-10S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -08 Female 37° JIC Flare Swivel x -10 Male 37° JIC Flare | Steel

2071-8-10S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -08 Female 37° JIC Flare Swivel x -10 Male 37° JIC Flare | Steel

$24.76 - $24.76
$24.76
$24.76 - $24.76
$24.76

Aeroquip® by Danfoss
37° JIC Flare Swivel/37° JIC Flare Adapter
Female 37° JIC Flare Swivel x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2071-8-10S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female JIC, 5/8in Male JIC
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 070221
Part Number
Steel		 Tube O.D. Thread T1 Thread T2 A B
2071-4-4S 0.25" 7/16-20 7/16-20 0.66" 0.89"
2071-4-6S 0.38" 7/16-20 9/16-18 0.82" 1.06"
2071-5-5S 0.31" 1/2-20 1/2-20 0.68" 0.95"
2071-6-4S 0.25" 9/16-18 7/16-20 0.88" 1.05"
2071-6-6S 0.38" 9/16-18 9/16-18 0.88" 1.06"
2071-8-6S 0.38" 3/4-16 9/16-18 0.96" 1.14"
2071-8-8S 0.50" 3/4-16 3/4-16 0.96" 1.25"
2071-8-10S 0.63" 3/4-16 7/8-14 1.00" 1.45"
2071-10-8S 0.50" 7/8-14 3/4-16 1.12" 1.33"
2071-10-10S 0.63" 7/8-14 7/8-14 1.12" 1.45"
2071-12-12S 0.75" 1-1/16-12 1-1/16-12 1.19" 1.66"
2071-14-14S 0.88" 1-3/16-12 1-3/16-12 1.20" 1.80"
2071-16-16S 1.00" 1-5/16-12 1-5/16-12 1.41" 1.81"
2071-20-20S 1.25" 1-5/8-12 1-5/8-12 1.68" 2.06"
2071-24-24S 1.50" 1-7/8-12 1-7/8-12 1.86" 2.33"
2071-32-32S 2.00" 2-1/2-12 2-1/2-12 2.44" 3.06"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
