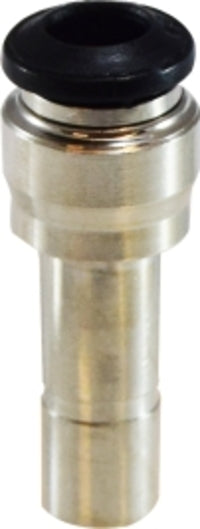

20754N (20-754N) by Midland | Push-In Fitting | Metric Reducer | 4mm Stud x 3mm Tube OD | Straight | Nickel Plated Brass

Save $4.19

$10.48

$10.48 - $10.48

$10.48

$6.29

$6.29 - $6.29

$6.29

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Metric Reducer

Specifications for Variant SKU: 20754N Midland
Shape (Orientation):	Straight
Ends Configuration:	4mm Tube Stem, 3mm Push-to-Connect
Material(s):	Nickel Plated Brass

Features:
Saves time and money No stripped threads No stripped parts Reduce inventory Completely reusable Quick installation No pitch identification
Specifications:
Tolerance: +/- .02 on all dimensions Max Operating Pressure: Vacuum to 290PSI Min Temperature: -4°F Max Temperature: 176°F Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer Media: Compressed air, water, vacuum


Part Number	Stud (mm)	Tube O.D. 2 (mm)	A
20754N (20-754N)	4mm	3mm	1.053"
20755N (20-755N)	5mm	4mm	1.131"
20756N (20-756N)	6mm	4mm	1.170"
20757N (20-757N)	6mm	5mm	1.248"
20758N (20-758N)	8mm	6mm	1.326"
20759N (20-759N)	10mm	8mm	1.482"
20760N (20-760N)	12mm	8mm	1.521"

Dimension data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
