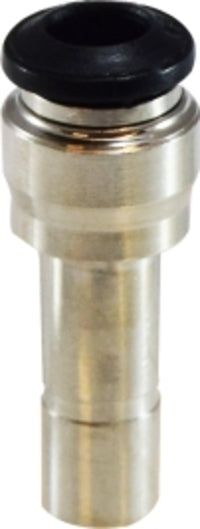

20759N (20-759N) by Midland | Push-In Fitting | Metric Reducer | 10mm Stud x 8mm Tube OD | Straight | Nickel Plated Brass

Save $2.46

$6.15

$6.15 - $6.15

$6.15

$3.69

$3.69 - $3.69

$3.69

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Metric Reducer

Specifications for Variant SKU: 20759N Midland
Shape (Orientation):	Straight
Ends Configuration:	10mm Tube Stem, 8mm Push-to-Connect
Material(s):	Nickel Plated Brass

Features:
Saves time and money No stripped threads No stripped parts Reduce inventory Completely reusable Quick installation No pitch identification
Specifications:
Tolerance: +/- .02 on all dimensions Max Operating Pressure: Vacuum to 290PSI Min Temperature: -4°F Max Temperature: 176°F Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer Media: Compressed air, water, vacuum


Part Number	Stud (mm)	Tube O.D. 2 (mm)	A
20754N (20-754N)	4mm	3mm	1.053"
20755N (20-755N)	5mm	4mm	1.131"
20756N (20-756N)	6mm	4mm	1.170"
20757N (20-757N)	6mm	5mm	1.248"
20758N (20-758N)	8mm	6mm	1.326"
20759N (20-759N)	10mm	8mm	1.482"
20760N (20-760N)	12mm	8mm	1.521"

Dimension data can change without notice.
