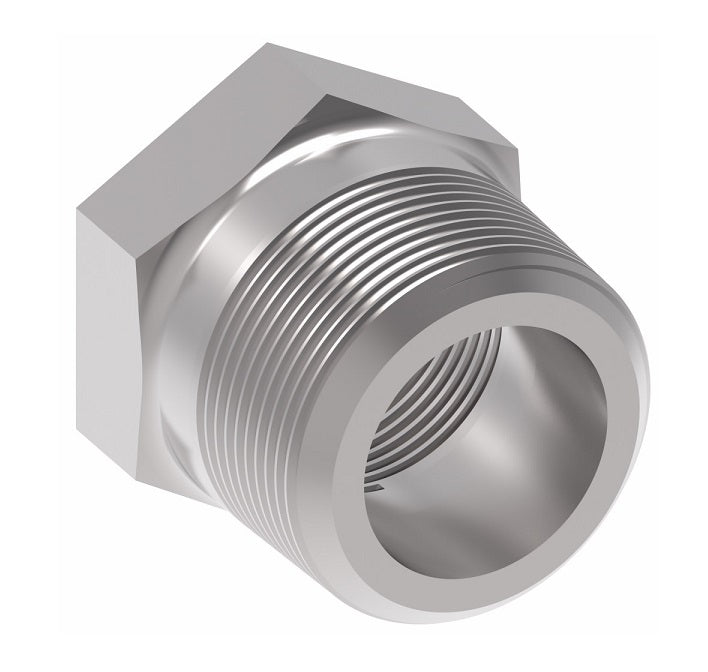

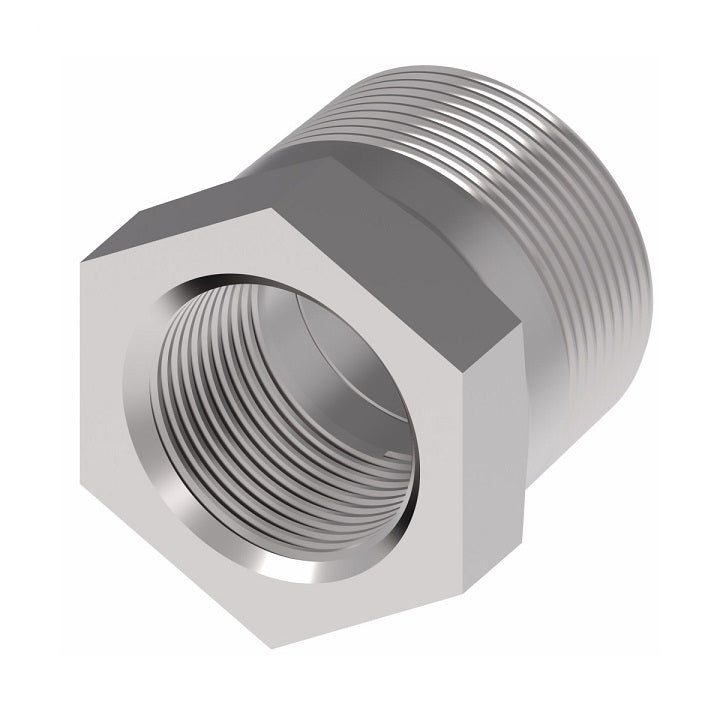

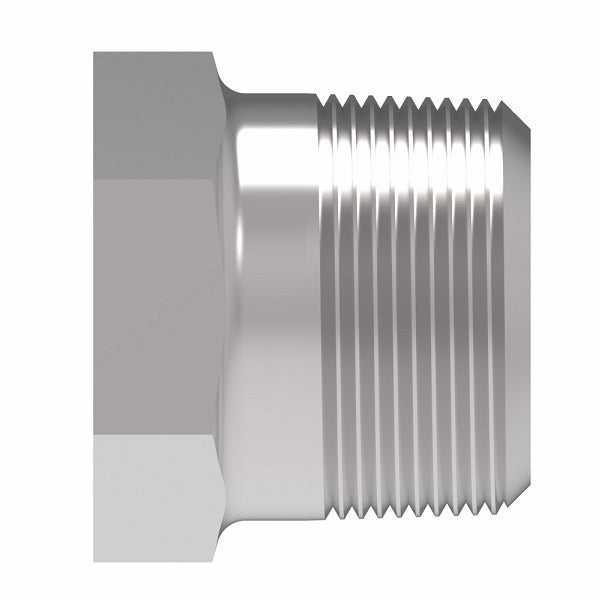

2081-20-12S Aeroquip by Danfoss | Reducer External Pipe/Internal Pipe Adapter | -20 Male NPTF x -12 Female NPTF | Steel
2081-20-12S Aeroquip by Danfoss | Reducer External Pipe/Internal Pipe Adapter | -20 Male NPTF x -12 Female NPTF | Steel
2081-20-12S Aeroquip by Danfoss | Reducer External Pipe/Internal Pipe Adapter | -20 Male NPTF x -12 Female NPTF | Steel
2081-20-12S Aeroquip by Danfoss | Reducer External Pipe/Internal Pipe Adapter | -20 Male NPTF x -12 Female NPTF | Steel

2081-20-12S Aeroquip by Danfoss | Reducer External Pipe/Internal Pipe Adapter | -20 Male NPTF x -12 Female NPTF | Steel

$8.76 - $8.76
$8.76
$8.76 - $8.76
$8.76

Aeroquip® by Danfoss
Reducer External Pipe/Internal Pipe Adapter
Male NPTF x Female NPTF
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2081-20-12S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Male NPTF, 3/4in Female NPTF
Material(s): Steel
Specifications:
  • Ref. SAE 140140
Steel
Part Number 		Stainless Steel
Part Number 		Thread P1 Thread P2 A
2081-4-2S 259-2081-4-2 1/4-18 1/8-27 0.85"
2081-6-2S 259-2081-6-2 3/8-18 1/8-27 0.85"
2081-6-4S 259-2081-6-4 3/8-18 1/4-18 1.00"
2081-8-2S - 1/2-14 1/8-27 1.10"
2081-8-4S 259-2081-8-4 1/2-14 1/4-18 1.10"
2081-8-6S 259-2081-8-6 1/2-14 3/8-18 1.12"
2081-12-4S 259-2081-12-4 3/4-14 1/4-14 1.17"
2081-12-6S - 3/4-14 3/8-18 1.17"
2081-12-8S - 3/4-14 1/2-14 1.36"
2081-16-4S - 1-11-1/2 1/4-18 1.36"
2081-16-6S - 1-11-1/2 3/8-14 1.36"
2081-16-8S 259-2081-16-8 1-11-1/2 1/2-14 1.36"
2081-16-12S 259-2081-16-12 1-11-1/2 3/4-14 1.49"
2081-20-8S - 1-1/4-11-1/2 1/2-14 1.47"
2081-20-12S 259-2081-20-12 1-1/4-11-1/2 3/4-14 1.47"
2081-20-16S 259-2081-20-16 1-1/4-11-1/2 1-11-1/2 1.61"
2081-24-12S - 1-1/2-11-1/2 3/4-14 1.57"
2081-24-16S - 1-1/2-11-1/2 1-11-1/2 1.57"
2081-24-20S - 1-1/2-11-1/2 1-1/4-11-1/2 1.57"
2081-32-16S - 2-11-1/2 1-11-1/2 1.75"
2081-32-20S - 2-11-1/2 1-1/4-11-1/2 1.75"
2081-32-24S - 2-11-1/2 1-1/2-11-1/2 1.75"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
