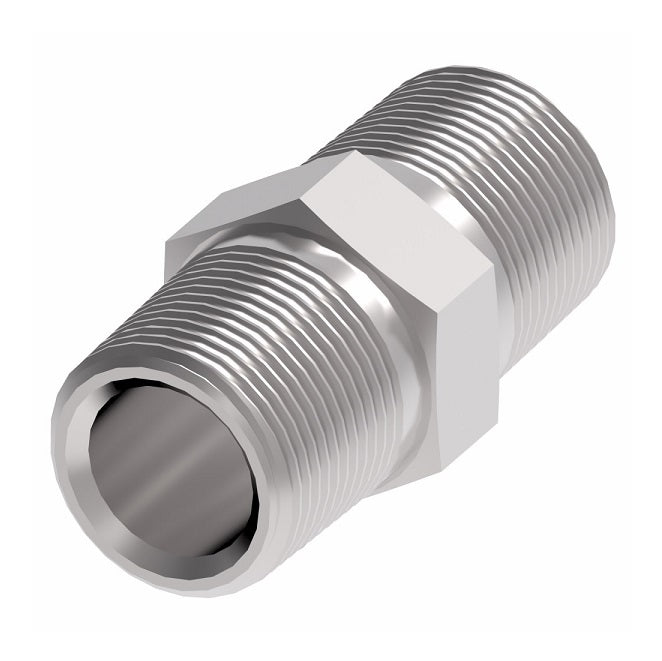

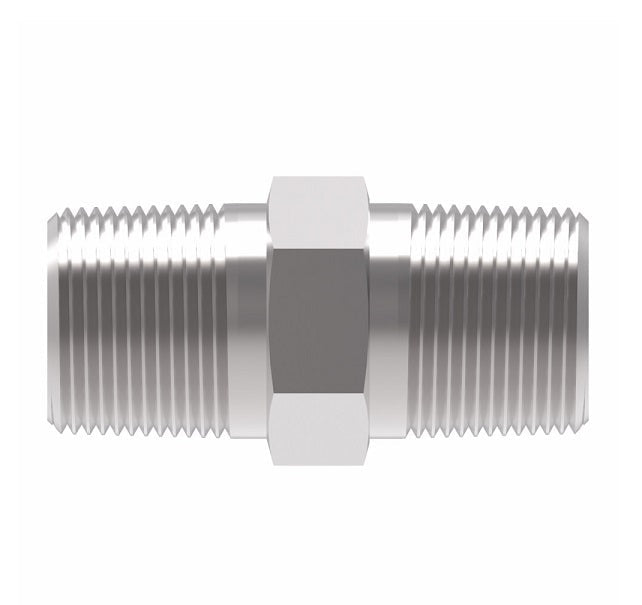

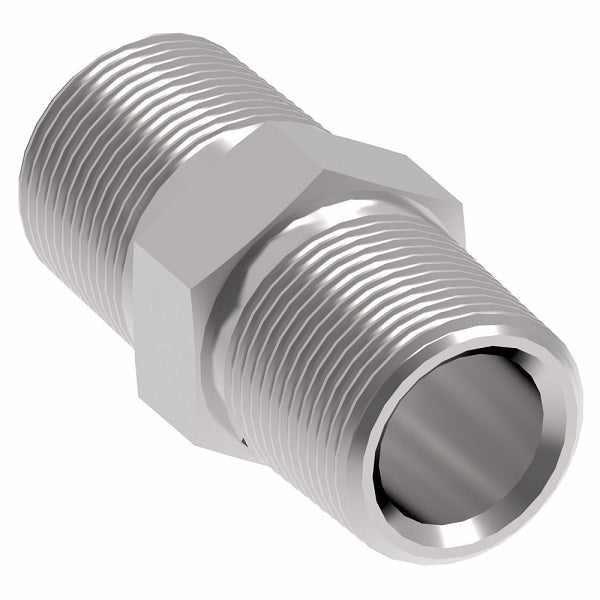

2083-12-12S Aeroquip by Danfoss | Nipple External Pipe/External Pipe Adapter | -12 Male NPTF x -12 Male NPTF | Steel

2083-12-12S Aeroquip by Danfoss | Nipple External Pipe/External Pipe Adapter | -12 Male NPTF x -12 Male NPTF | Steel

$5.23 - $5.23
$5.23
$5.23 - $5.23
$5.23

Aeroquip® by Danfoss
Nipple External Pipe/External Pipe Adapter
Male NPTF x Male NPTF
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2083-12-12S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPTF, 3/4in Male NPTF
Material(s): Steel
Specifications:
  • Ref. SAE 140137
Steel
Part Number 		Stainless Steel
Part Number 		Thread P1 Thread P2 A
2083-1-1S - 1/16-27 1/16-27 0.94"
2083-2-1S - 1/8-27 1/16-27 0.97"
2083-2-2S 259-2083-2-2 1/8-27 1/8-27 1.06"
2083-4-2S 259-2083-4-2 1/4-18 1/8-27 1.26"
2083-4-4S 259-2083-4-4 1/4-18 1/4-18 1.45"
2083-6-2S - 3/8-18 1/8-27 1.25"
2083-6-4S 259-2083-6-4 3/8-18 1/4-18 1.45"
2083-6-6S 259-2083-6-6 3/8-18 3/8-18 1.45"
2083-8-4S - 1/2-14 1/4-18 1.70"
2083-8-6S - 1/2-14 3/8-18 1.70"
2083-8-8S 259-2083-8-8 1/2-14 1/2-14 1.89"
2083-12-6S - 3/4-14 3/8-18 1.77"
2083-12-8S - 3/4-14 1/2-14 1.96"
2083-12-12S 259-2083-12-12 3/4-14 3/4-14 1.96"
2083-16-12S - 1-11-1/2 3/4-14 2.15"
2083-16-16S - 1-11-1/2 1-11-1/2 2.34"
2083-20-16S - 1-1/4-11-1/2 1-11-1/2 2.45"
2083-20-20S 259-2083-20-20 1-1/4-11-1/2 1-1/4-11-1/2 2.48"
2083-24-24S 259-2083-24-24 1-1/2-11-1/2 1-1/2-11-1/2 2.61"
2083-32-32S - 2-11-1/2 2-11-1/2 2.82"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
