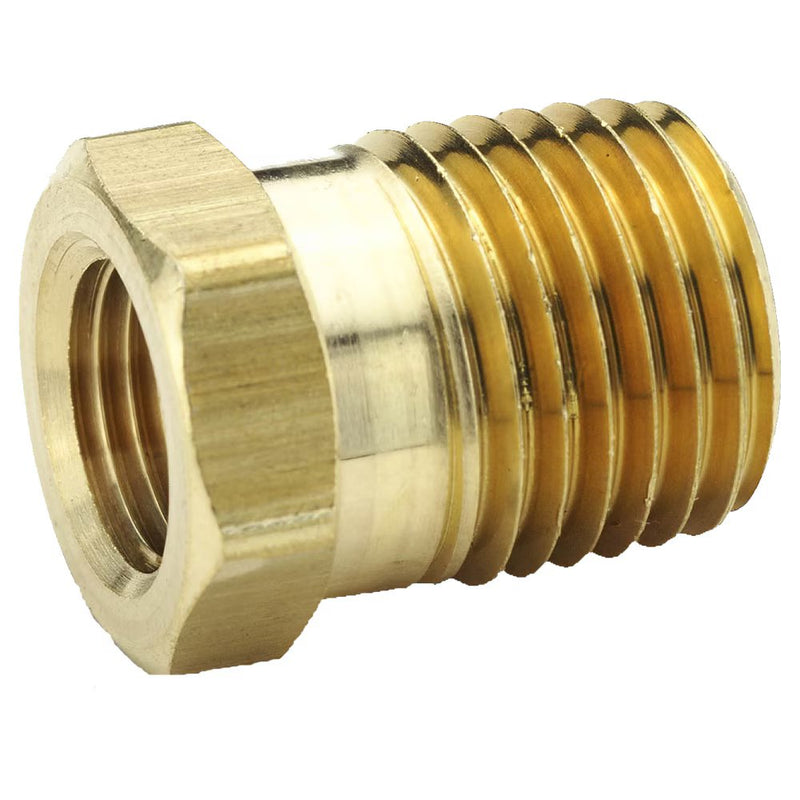

209P-8-4 by Parker | Legris Reducer | 1/4" Female NPTF Thread x 1/2" Male NPTF Thread | 7/8" Hex | 1.00" Length | Straight | Brass | Pack of 25

209P-8-4 by Parker | Legris Reducer | 1/4" Female NPTF Thread x 1/2" Male NPTF Thread | 7/8" Hex | 1.00" Length | Straight | Brass | Pack of 25

Save $66.98 Save $66.98
$167.45
$167.45 - $167.45
$167.45
$100.47
$100.47 - $100.47
$100.47

by Parker Hannifin
Brass Adapters:209P Reducer, Male/Female NPTF Thread

Package Quantity: 25 Units

Specifications for Variant SKU: 209P-8-4 Parker | 25 |
Series: 209P Series
Shape (Orientation): Straight
Material(s): Brass
Adapters and Manifolds:
Part Number C C1 F L Flow Diameter Kg
209P-4-2 1/8" 1/4" 9/16" .75" .339" .012 Kg
209P-6-2 1/8" 3/8" 11/16" .75" .339" .024 Kg
209P-6-4 1/4" 3/8" 3/4" .75" .441" .179 Kg
209P-8-2 1/8" 1/2" 7/8" 1.00" .339" .059 Kg
209P-8-4 1/4" 1/2" 7/8" 1.00" .441" .048 Kg
209P-8-6 3/8" 1/2" 7/8" 1.00" .571" .033 Kg
209P-12-2 1/8" 3/4" 1-1/8" 1.00" .339" -
209P-12-4 1/4" 3/4" 1-1/8" 1.00" .441" .093 Kg
209P-12-6 3/8" 3/4" 1-1/8" 1.00" .571" .08 Kg
209P-12-8 1/2" 3/4" 1-1/8" 1.00" .703" .057 Kg
209P-16-8 1/2" 1" 1-3/8" 1.31" .339" -
209P-16-12 3/4" 1" 1-3/8" 1.31" .906" -
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
