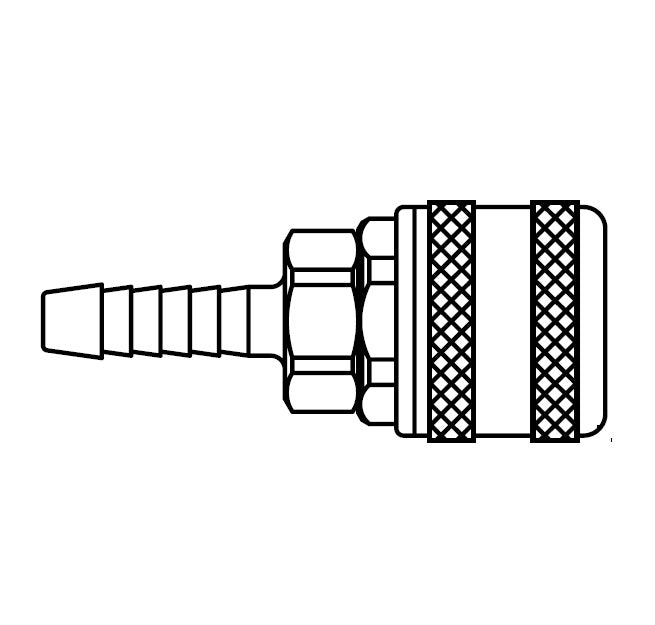

210022 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 210 Series | Hose Barb End | 1/4" Hose ID x 1/4" Body Size | Socket | Buna-N Seal | Steel

210022 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 210 Series | Hose Barb End | 1/4" Hose ID x 1/4" Body Size | Socket | Buna-N Seal | Steel

$20.36 - $20.36
$20.36
$20.36 - $20.36
$20.36

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 210 Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 210/310 series pneumatic couplings have a pin-type one-way shut off operation.
Specifications for Variant SKU: 210022 Danfoss
Brand: Hansen
Series: 210 Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Automatic push-to-connect.
  • Pin-lock design.
Applications & Markets:
  • Construction
  • Maintenance and Repair
  • In-plant/Industrial
  • Pneumatic Tools
Materials:
  • Standard body material: Zinc trivalent plated carbon steel.
  • Standard seal material: Buna-N.
  • Alloy steel locking pins.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
210 1/4" 17 bar 250 psi 68 bar 1,000 psi 538 lpm 19 scfm
310 3/8" 17 bar 250 psi 68 bar 1,000 psi 1,415 lpm 50 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
210 Series | Sockets
Part Number Coupling Type Body Size Hose ID End Type Material Figure Dimensions
A B
210022 Socket/Female 1/4" 1/4" Hose Barb Steel 1 2.39"
(60.7mm)		 1.02"
(25.9mm)
210215 Socket/Female 1/4" 3/8" Hose Barb Steel 1 2.39"
(60.7mm)		 1.02"
(25.9mm)
210 Series | Plugs
Part Number Coupling Type Body Size Hose ID End Type Material Figure Dimensions
C D
3946 Plug/Male 1/4" 1/4" Hose Barb Steel 2 2.14"
(54.4mm)		 0.47"
(11.9mm)
3947 Plug/Male 1/4" 5/16" Hose Barb Steel 2 2.14"
(54.4mm)		 0.47"
(11.9mm)
22238E Plug/Male 1/4" 3/8" Hose Barb Steel 2 2.14"
(54.4mm)		 0.50"
(12.7mm)
