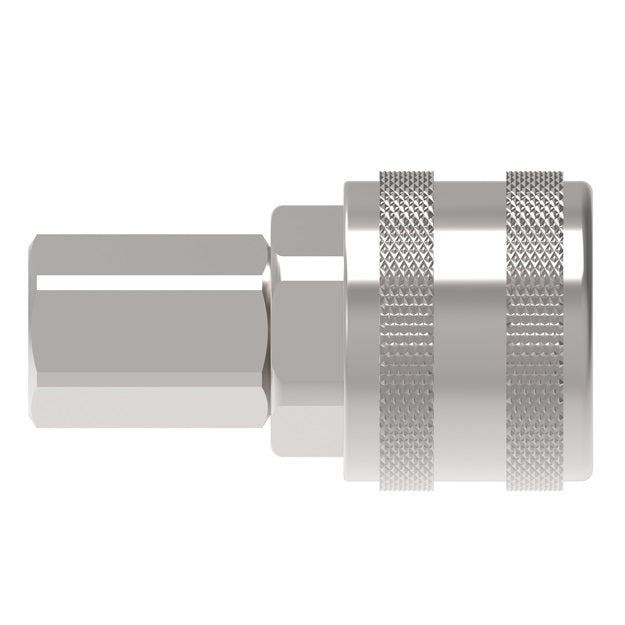

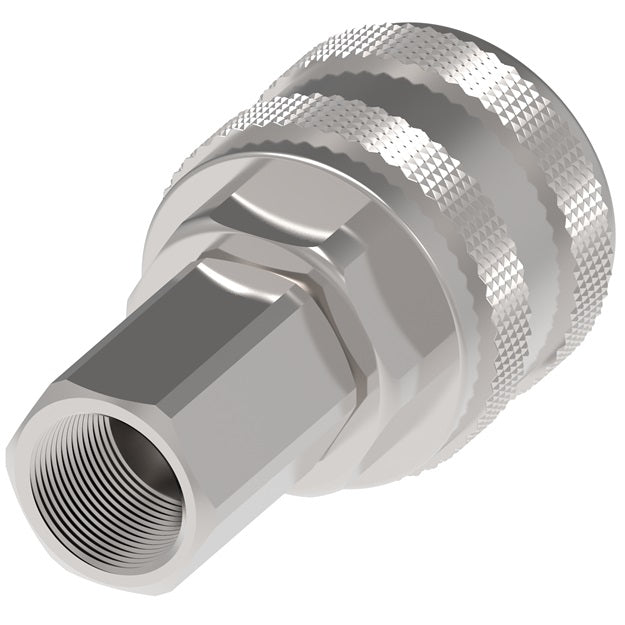

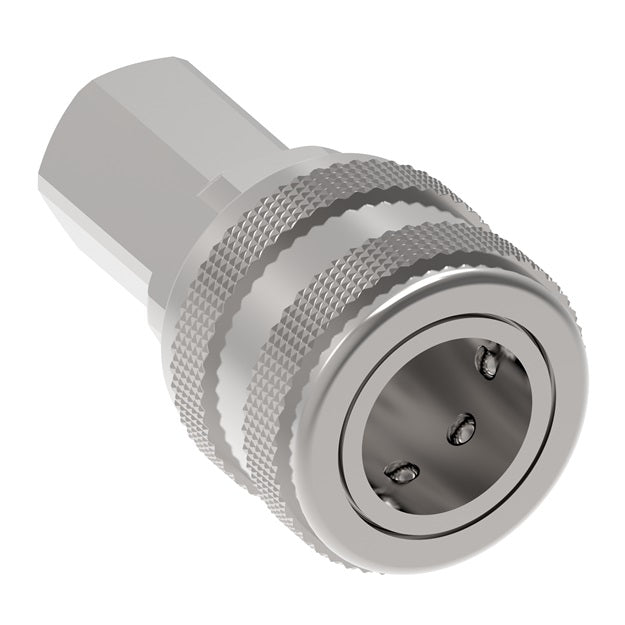

210212 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 210 Series | 1/4" Male NPTF x 1/4" Body Size | Socket | Buna-N Seal | Steel
210212 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 210 Series | 1/4" Male NPTF x 1/4" Body Size | Socket | Buna-N Seal | Steel
210212 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 210 Series | 1/4" Male NPTF x 1/4" Body Size | Socket | Buna-N Seal | Steel
210212 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 210 Series | 1/4" Male NPTF x 1/4" Body Size | Socket | Buna-N Seal | Steel

210212 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 210 Series | 1/4" Male NPTF x 1/4" Body Size | Socket | Buna-N Seal | Steel

$13.02 - $13.02
$13.02
$13.02 - $13.02
$13.02

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 210 Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 210/310 series pneumatic couplings have a pin-type one-way shut off operation.
Specifications for Variant SKU: 210212 Danfoss
Brand: Hansen
Series: 210 Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Automatic push-to-connect.
  • Pin-lock design.
Applications & Markets:
  • Construction
  • Maintenance and Repair
  • In-plant/Industrial
  • Pneumatic Tools
Materials:
  • Standard body material: Zinc trivalent plated carbon steel.
  • Standard seal material: Buna-N.
  • Alloy steel locking pins.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
210 1/4" 17 bar 250 psi 68 bar 1,000 psi 538 lpm 19 scfm
310 3/8" 17 bar 250 psi 68 bar 1,000 psi 1,415 lpm 50 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
210 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
210212 Socket/Female 1/4" 1/4" 1/4-18 Male NPTF Steel 1 1.95"
(49.5mm)		 1.02"
(25.9mm)		 0.69"
(17.5mm)
210213 Socket/Female 1/4" 3/8" 3/8-18 Male NPTF Steel 1 1.91"
(48.5mm)		 1.02"
(25.9mm)		 0.69"
(17.5mm)
210 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
C D Hex
2607 Plug/Male 1/4" 1/8" 1/8-27 Male NPTF Steel 2 1.42"
(36.1mm)		 0.58"
(14.7mm)		 0.5"
(12.7mm)
2608 Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Steel 2 1.68"
(42.7mm)		 0.65"
(16.5mm)		 0.56"
(14.2mm)
2608B Plug/Male 1/4" 1/4" 1/4-19 Male BSPT Steel 2 1.68"
(42.7mm)		 0.65"
(16.5mm)		 0.56"
(14.2mm)
20AP37M Plug/Male 1/4 " 3/8" 3/8-18 Male NPTF Steel 2 1.68"
(42.7mm)		 0.79"
(20.1mm)		 0.69"
(17.5mm)
