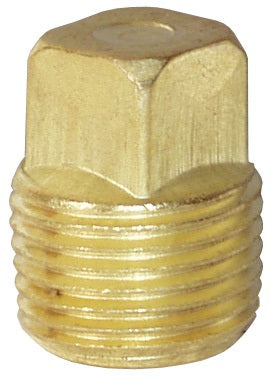

2111600C by Dixon Valve | Square Head Plug | 1" Male NPF-SAE | Lead-Free Brass

Save $1.43 Save $1.43
Original price $16.95
Original price $16.95 - Original price $16.95
Original price $16.95
Current price $15.52
$15.52 - $15.52
Current price $15.52

Dixon Valve
Pipe Fitting | Square Head Plug | Male NPF-SAE Short Threads

For use with potable water.

For closing the end of a pipe or fitting in any low to medium pressure (300 maximum PSI) line connection.


Specifications for Variant SKU: 2111600C Dixon
Series: 211 Series
Material(s): Brass
Applicable Specs & Approvals: Lead Free
Applications:
  • Use with brass, copper, or iron pipe, air, natural gas, oil, potable water.
Material:
  • Brass plugs are solid.
  • Lead-Free Brass per NSF/ANSI 372.
Specifications:
  • Lead-free per NSF/ANSI 372, Brass Alloy 270.
  • Reference SAE J531.
  • Material per SAE J463.
  • Parts are RoHS and SWDA compliant.
Safety Notes:
  • 300 PSI maximum.
  • Male PTF threads to mate with compatible female thread- sealant is recommended.
Lead-Free Brass 260/270
Part Number
Male NPF-SAE
2110200C 1/8"
2110400C 1/4"
2110600C 3/8"
2110800C 1/2"
2111200C 3/4"
2111600C 1"
