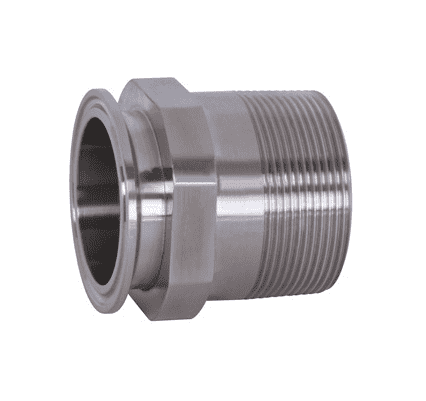

21MP-R150 Dixon 316L Stainless Steel Sanitary Clamp x Male NPT Adapter - 1-1/2" Tube OD - 1-1/2" NPT

21MP-R150 Dixon Valve 316L Stainless Steel Sanitary Clamp x Male NPT Adapter - 1-1/2" Tube OD - 1-1/2" NPT

Save $5.00 Save $5.00
$44.96
$44.96 - $44.96
$44.96
$39.96
$39.96 - $39.96
$39.96

Dixon Sanitary Fittings Sanitary Clamp Adapter - Clamp x Male NPT Adapter - 316L Stainless Steel
Specifications for Variant SKU: 21MP-R150 Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Sanitary Clamp End, 1-1/2in Male NPT
Material(s): 316L Stainless Steel
Part Number Tube OD Male NPT Size Dimensions
 Weight (Lbs.)
A B
21MP-R50125 1/2" 1/8" 2.000" - 0.3100
21MP-R5025 1/2" 1/4" 2.000" 0.595" 0.1600
21MP-R50375 1/2" 3/8" 2.000" 0.600" 0.1850
21MP-R50 1/2" 1/2" 1.630" 0.782" 0.2200
21MP-R5075 1/2" 3/4" 2.000" 0.794" 0.3400
21MP-R75-125 3/4" 1/8" - - 0.1050
21MP-R7525 3/4" 1/4" 2.000" 0.595" 0.1500
21MP-R75375 3/4" 3/8" 2.000" 0.600" 0.2600
21MP-R7550 3/4" 1/2" 2.000" 0.782" 0.2000
21MP-R75 3/4" 3/4" 1.790" 0.794" 0.2500
21MP-R75100 3/4" 1" 2.250" - 0.7400
21MP-R100-125 1" 1/8" 2.190" - 1.0000
21MP-R10025 1" 1/4" 2.160" - 0.9600
21MP-R100375 1" 3/8" 2.160" - 0.8800
21MP-R10050 1" 1/2" 2.190" 0.782" 0.6700
21MP-R10075 1" 3/4" 2.190" 0.794" 0.6100
21MP-R100 1" 1" 2.250" 0.985" 0.7400
21MP-R100125 1" 1-1/4" 2.440" 1.009" 1.3200
21MP-R100150 1" 1-1/2" 2.440" 1.025" 1.3200
21MP-R100200 1" 2" 2.630" 1.058" 1.3200
21MP-R150-125 1-1/2" 1/8" 2.190" - 1.5400
21MP-R15025 1-1/2" 1/4" 2.160" - 1.2500
21MP-R150375 1-1/2" 3/8" 2.160" 0.600" 0.7950
21MP-R15050 1-1/2" 1/2" 2.190" 0.782" 0.8050
21MP-R15075 1-1/2" 3/4" 2.190" 0.794" 0.5600
21MP-R150100 1-1/2" 1" 2.440" 0.985" 0.6300
21MP-R150125 1-1/2" 1-1/4" 2.440" 1.009" 0.5700
21MP-R150 1-1/2" 1-1/2" 2.250" 1.025" 0.9000
21MP-R150200 1-1/2" 2" 2.630" 1.058" 1.8300
21MP-R20025 2" 1/4" 2.470" - 1.5000
21MP-R20050 2" 1/2" 2.190" 0.782" 1.1900
21MP-R20075 2" 3/4" 2.190" 0.794" 1.2450
21MP-R200100 2" 1" 2.470" 0.985" 0.8200
21MP-R200125 2" 1-1/4" - - 1.5470
21MP-R200150 2" 1-1/2" 2.630" 1.009" 0.7400
21MP-R200 2" 2" 2.640" 1.058" 1.3500
21MP-R200250 2" 2-1/2" 3.130" - 1.5000
21MP-R200300 2" 3" 3.500" - 2.0000
21MP-R250100 2-1/2" 1" 2.780" 0.782" 2.0000
21MP-R250200 2-1/2" 2" 2.780" 1.058" 1.6600
21MP-R250 2-1/2" 2-1/2" 2.880" 1.571" 1.5825
21MP-R250300 2-1/2" 3" 3.690" - 2.0000
21MP-R300200 3" 2" 3.000" 1.058" 3.0900
21MP-R300250 3" 2-1/2" 3.000" - 2.5900
21MP-R300 3" 3" 3.070" 1.634" 2.5200
21MP-R300400 3" 4" 3.500" - 3.0000
21MP-R400 4" 4" 3.160" 1.734" 3.2940
21MP-R600 6" 6" 4.500" - 10.0000
