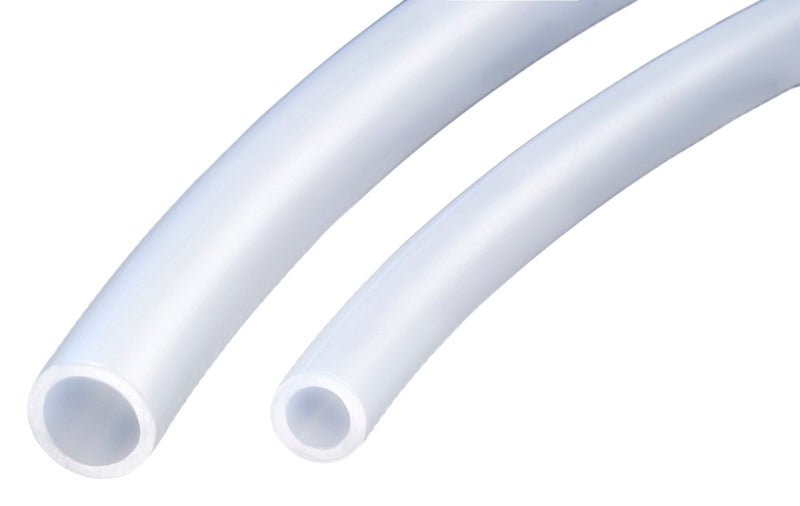

220-0462X2K Kuri-Tec by Kuriyama | 220 Series | Linear Low Density Food Grade Polyethylene Tubing | 1/4" OD | .125" ID | .062" Wall Thickness | 2000ft Length

220-0462X2K Kuri-Tec by Kuriyama | 220 Series | Linear Low Density Food Grade Polyethylene Tubing | 1/4" OD | .125" ID | .062" Wall Thickness | 2000ft Length

Save $80.88 Save $80.88
$416.88
$416.88 - $416.88
$416.88
$336.00
$336.00 - $336.00
$336.00

Kuri Tec® by Kuriyama
220 Series | Linear Low Density Food Grade Polyethylene Tubing

LLDPE food grade tubing for standard industrial applications.

Complies with FDA and RoHS requirements.

Package Quantity: 2000 Foot

Specifications for Variant SKU: 220-0462X2K Kuriyama | 2000 |
Brand: Kuri Tec
Series: 220 Series
Hose Color(s): White/Off-White
Internal Diameter: 0.125in - 1/8in
Outer Diameter: 0.25in
Tubing Construction: LLDPE
Applicable Specs & Approvals: Applicable FDA Requirements, RoHS Compliant
General Applications:
  • Transfer of air and liquids in industrial applications.
  • Water lines.
  • Water softener lines.
  • Pneumatic logic control lines.
  • Vending equipment.
Construction:
  • Linear low density food grade polyethylene tubing in compliance with FDA requirements - natural color. Also in compliance with RoHS requirements.
Service Temperature Range:
  • -50°F (-45°C) to +140°F (+60°C)
Features and Advantages:
  • Economical and lightweight.
  • LLDPE resin provides excellent environmental stress crack resistance.
  • Natural color.
  • Excellent resistance to solvents.
  • Chemically inert.
  • Phthalate Free!
Specifications:
  • FDA
  • RoHS
Notes:
  • Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Part Number Nominal OD Nominal ID Nominal Wall Max. Working
Pressure		 Approx. wt
per kg
in mm in mm in mm @70°F
(20°C)		 @122°F
(50°C)
220-0440X1K 1/4" 6.4mm 0.170" 4.3mm 0.040" 1.0mm 140 PSI 60 PSI 11 lbs.
220-0440X2K 1/4" 6.4mm 0.170" 4.3mm 0.040" 1.0mm 140 PSI 60 PSI 22 lbs.
220-0440X500 1/4" 6.4mm 0.170" 4.3mm 0.040" 1.0mm 140 PSI 60 PSI 6 lbs.
220-0440X100 1/4" 6.4mm 0.170" 4.3mm 0.040" 1.0mm 140 PSI 60 PSI 1 lbs.
220-0462X2K 1/4" 6.4mm 0.125" 3.1mm 0.062" 1.6mm 150 PSI 75 PSI 30 lbs.
220-0562X15C 5/16" 7.9mm 0.188" 4.8mm 0.062" 1.6mm 150 PSI 75 PSI 30 lbs.
220-0662X1K 3/8" 9.5mm 0.250" 6.4mm 0.062" 1.6mm 125 PSI 50 PSI 25 lbs.
220-0662X500 3/8" 9.5mm 0.250" 6.4mm 0.062" 1.6mm 125 PSI 50 PSI 13 lbs.
220-0662X100 3/8" 9.5mm 0.250" 6.4mm 0.062" 1.6mm 125 PSI 50 PSI 3 lbs.
220-0862X500 1/2" 12.7mm 0.375" 9.5mm 0.062" 1.6mm 100 PSI 35 PSI 18 lbs.
220-0862X100 1/2" 12.7mm 0.375" 9.5mm 0.062" 1.6mm 100 PSI 35 PSI 3.6 lbs.
220-1062X500 5/8" 15.9mm 0.500" 12.7mm 0.062" 1.6mm 75 PSI 25 PSI 23 lbs.
220-1062X100 5/8" 15.9mm 0.500" 12.7mm 0.062" 1.6mm 75 PSI 25 PSI 4.8 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
